• Model NO.：DCS
• Scale Structure：Steel I Beam
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection
• Transport Package：Platforms Are Packed by Film or Color Strip
• Specification：30T
• Trademark：SIMEI
• Origin：China
• HS Code：9031809090
• Production Capacity：50000PCS,Year

Rated load                       5t.10t.15t.20t.25t.30t.35t.40t                               Nominal Temp Range                  -10~+40°C

Accuracy Class               C2~C3                                                                 Service Temp Range                    -30~+70ºC

Sensitive                          2.0±0.002mV/V                                                   Safe load limit                               150%F.S

Non-Linearity                   ±0.03%F.S                                                           Breaking Load                               250%F.S

Hysteresis error              ±0.03%F.S                                                           Nominal of range excitating         10~12V DC

Creep (30Min)                  ±0.02F.S                                                              Protection Class                              IP67

TC ZERO                          ±0.02F.S/10ºC                                                     Material                                            Alloy Steel

TC SPAN                          ±0.02F.S/10ºC                                                                                                              Stainless steel

input resistance              750±10Ω                        Cable

Output resistance           702±3Ω                          Length:

5t

10t

15t

20t

25t

30t

 40t

Insulation resistance      >=500MΩ

5.2m

4/8m

4/10m

4/10/12m

4/10/12m

12/16m

12/16m








Rated Load(T)	5	10.15.20.25.30	40
D1	68	85~88	88
D2	50.8	76.2	76.2
H	168.8	224.7	230.7
L	224	240	240

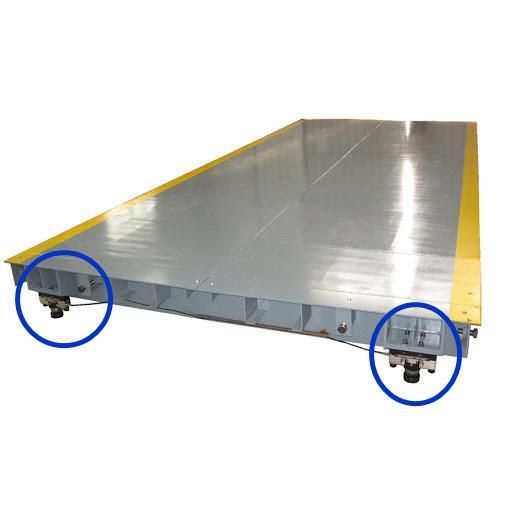

APLLICATION

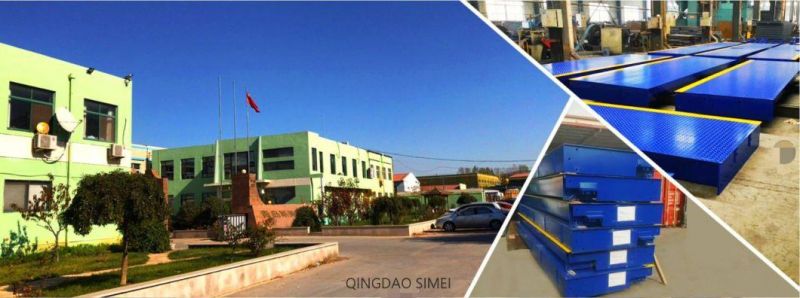

Company profile :

        Qingdao SIMEI Weighing Appratus Co.,Ltd  Which is a company specialized in weighing equipment for Scientific  research, development and production.according to ISO9001 quality system management, we equipped with advanced facilities., is located in beautiful city Qingdao, China. The company was founded in 2007, since its establishment, adhere to the truth-seeking innovation, excellence enterprise philosophy, after years of continuous accumulation and development, has become one of the domestic scale of professional weighing equipment manufacturers.






Certificate :

WHY CHOOSE SIMEI:

 1. PROFESSIONAL EXPERIENCE
2.SUPPLY YOU TOP QUALITY PRODUCTS WITH COMPETITIVE PRICE.
3.STRICTLY QUALITY CONTROL THE WHOLE PRODUCTION PROCESS AND GUARANTEE PROMPT          DELIVERY AND ENOUGH STOCKS TO MEET URGENT ORDER REQUEST.
4. SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES. WE ARE NOT JUST WORKING PARTER,BUT ALSO FRIENDS AND FAMILY.
5.WE HAVE LOTS OF SENIOR STRUCTURE ENGINEER,SENIOR SYSTEM ENGINEER ETC TECHNICAL TEAM TO HELP YOU SOLVE WEIGHING PROBLEM.


For more details,please kindly contact us freely !
