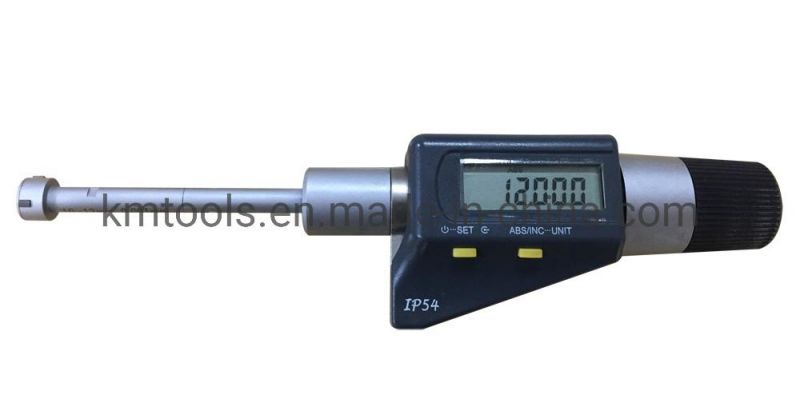

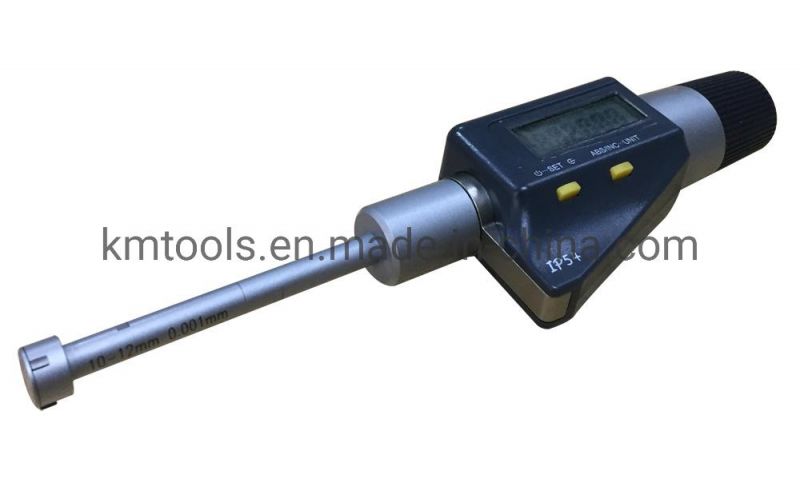

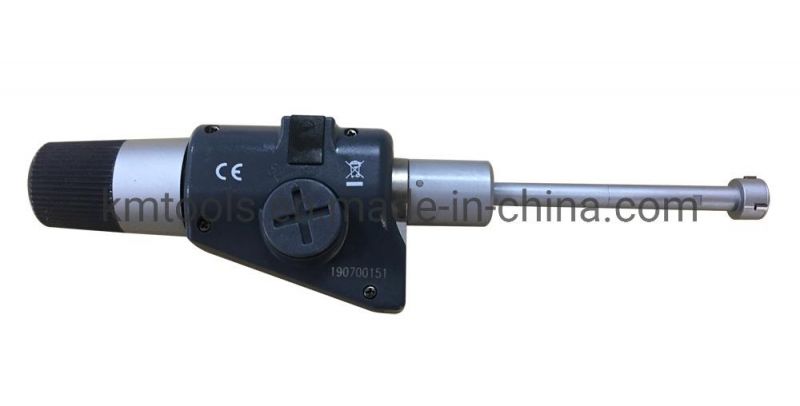

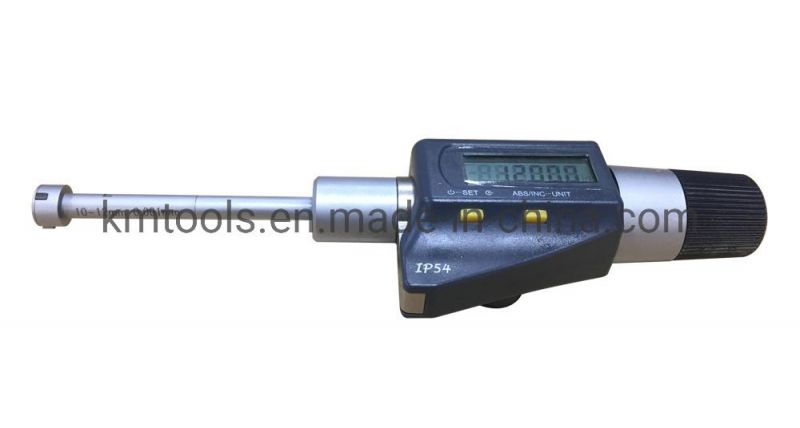

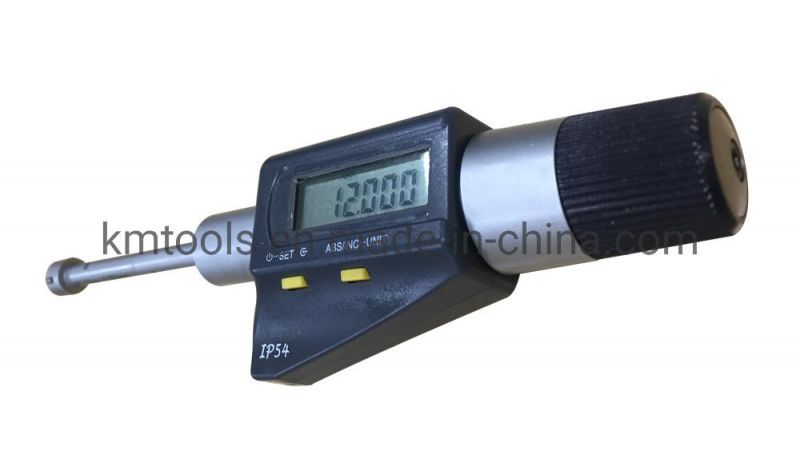

10-12mm IP54 Protection Degree Three Point Internal Micrometer
Deko Corporation- Type：Micrometer
- Measurement Object：Inside Diameter
- Range：10-12mm
- Resolution：0.001mm
- Precision：0.004mm
- Measure Method：Manual
Base Info
- Model NO.：KM-2332-12
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS
- Customized：Customized
- Measurement：Metric,Inch Conversion
- Protection Degree：IP54

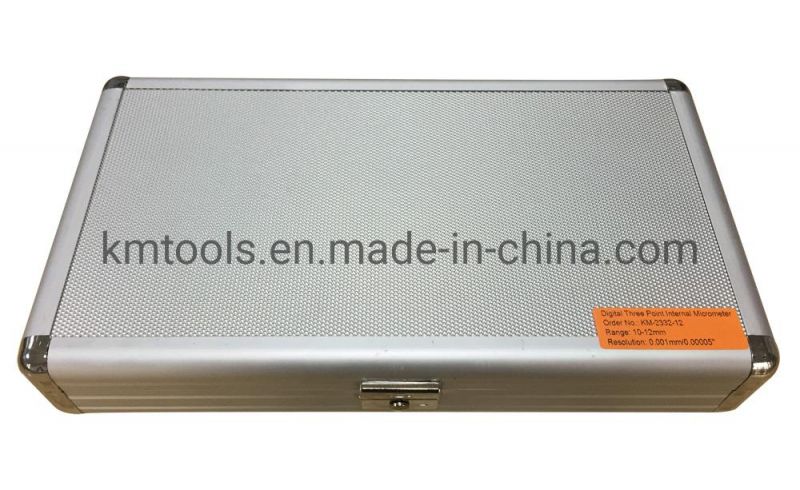

- Transport Package：Aluminium Box
- Specification：DIN Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-2332-12 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS Customized Customized Measurement Metric/Inch Conversion Protection Degree IP54 Transport Package Aluminium Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1.Protection level IP54.
2.Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with an extension rod.
3.Ratchet stop.

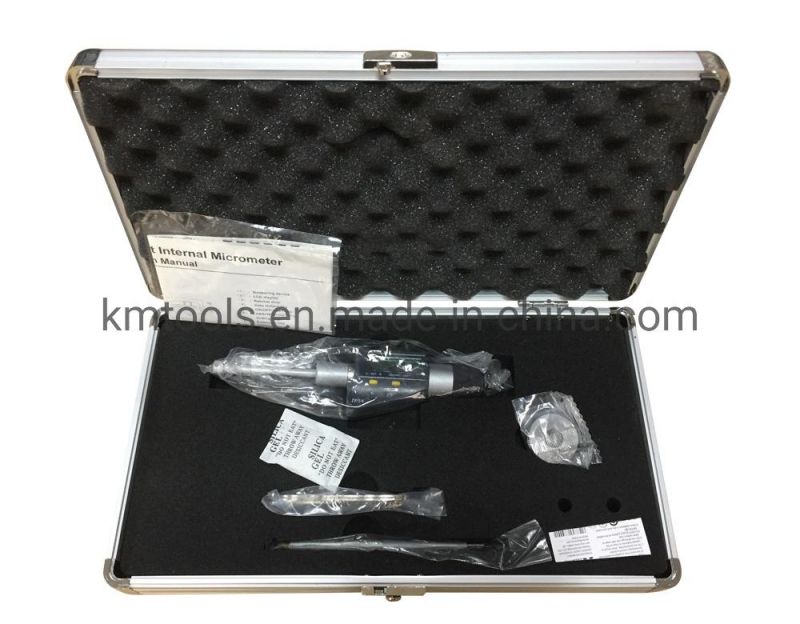

4.Supplied with setting rings.
Specification:
Metric/Inch
| Order No. | Measuring Range | Accuracy | Resolution | Setting rings | L1 | A | Extension rods |
| KM-2332-8 | 6~8mm | ±0.004mm | 0.001mm | Φ6mm | 53.5mm | 0.5mm | 100mm |
| KM-2332-10 | 8~10mm | ±0.004mm | 0.001mm | Φ8mm | 53.5mm | 0.5mm | 100mm |
| KM-2332-12 | 10~12mm | ±0.004mm | 0.001mm | Φ10mm | 53.5mm | 0.5mm | 100mm |
Inch/Metric
| Order No. | Measuring Range | Accuracy | Resolution | Setting rings | L1 | A | Extension rods |
| KM-2332-0.35 | 0.275~0.35″ | ±0.00016″ | 0.00005″ | 0.275″ | 2.14″ | 0.02″ | 4″ |
| KM-2332-0.425 | 0.35~0.425″ | ±0.00016″ | 0.00005″ | 0.35″ | 2.14″ | 0.02″ | 4″ |
| KM-2332-0.5 | 0.425~0.5″ | ±0.00016″ | 0.00005″ | 0.5″ | 2.14″ | 0.02″ | 4″ |
