Rb Work Ring Gauge on Sale
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Type：Gauge Block
- Measurement Object：Outside Diameter
- Test Methods：Indicator Method
- Material：Steel
- Precision Gauge：Precision Gauge
- Certification：Jb,T
Base Info
- Model NO.：RB1,2 RB3,4 RB1
- Usage：For Working
- Shape：Round
- Customized：Non-Customized
- Transport Package：Carton or Wooden Case
- Specification：RB1,2 RB3,4 RB1
- Trademark：TR Solids Control
- Origin：Xi′an, China
- HS Code：9017300000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. RB1/2 RB3/4 RB1 Usage For Working Shape Round Customized Non-Customized Transport Package Carton or Wooden Case Specification RB1/2 RB3/4 RB1 Trademark TR Solids Control Origin Xi′an, China HS Code 9017300000 Production Capacity 10000PCS/MonthProduct Description

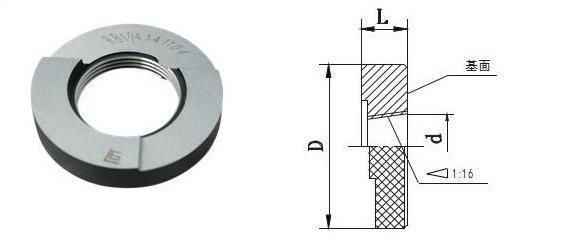

RB Work Ring Gauge
Features
Suitable for checking the taper male thread(thread-seal fittings).It conforms to JB/T10031-1999.
Specifications
Unit:mm
| Thread Size | T.P.I | L | D | d |
| RB1/2 | 14 | 9.979 | 45 | 18.875 |
| RB3/4 | 14 | 11.339 | 48 | 24.361 |
| RB1 | 11 | 12.700 | 56 | 30.608 |
| RB1 1/4 | 11 | 15.009 | 72 | 39.269 |
| RB1 1/2 | 11 | 15.009 | 80 | 45.162 |
| RB2 | 11 | 18.184 | 90 | 56.973 |
| RB2 1/2 | 11 | 20.926 | 115 | 72.537 |
| RB3 | 11 | 24.101 | 135 | 85.237 |
| RB3 1/2 | 11 | 25.663 | 155 | 85.237 |
| RB4 | 11 | 28.864 | 175 | 110.383 |
| RB5 | 11 | 32.039 | 200 | 135.783 |
| RB6 | 11 | 32.039 | 235 | 161.183 |
