Horizontal Type Digital Linear Scale 100mm/4"
Hangzhou Allendale Limited- Type:Digital Scale
- Material:Stainless Steel
- Measurement Object:Length
- Range:0~100mm
- Resolution:0.01mm
- Precision:0.02mm
Base Info
- Model NO.:ME-SH-HZ100
- Measure Method:Manual
- Accuracy:A
- Precision Measuring Device:Precision Measuring Device
- Customized:Non-Customized
- Transport Package:Carton
- Specification:Length 229mm
- Origin:China
- HS Code:9017300000
Description
Basic Info.
Model NO. ME-SH-HZ100 Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Customized Non-Customized Transport Package Carton Specification Length 229mm Origin China HS Code 9017300000Product Description

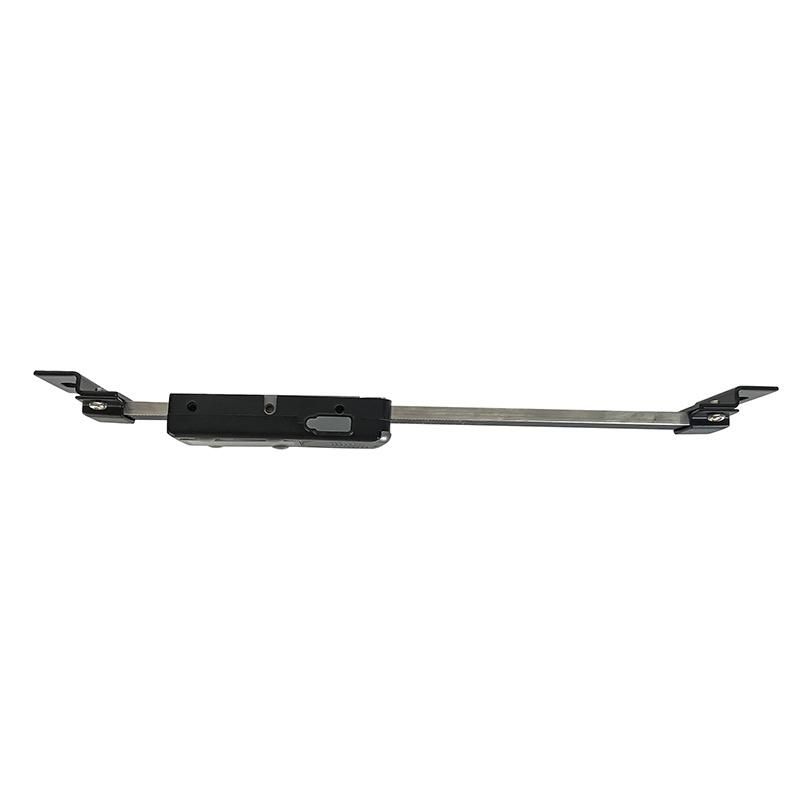

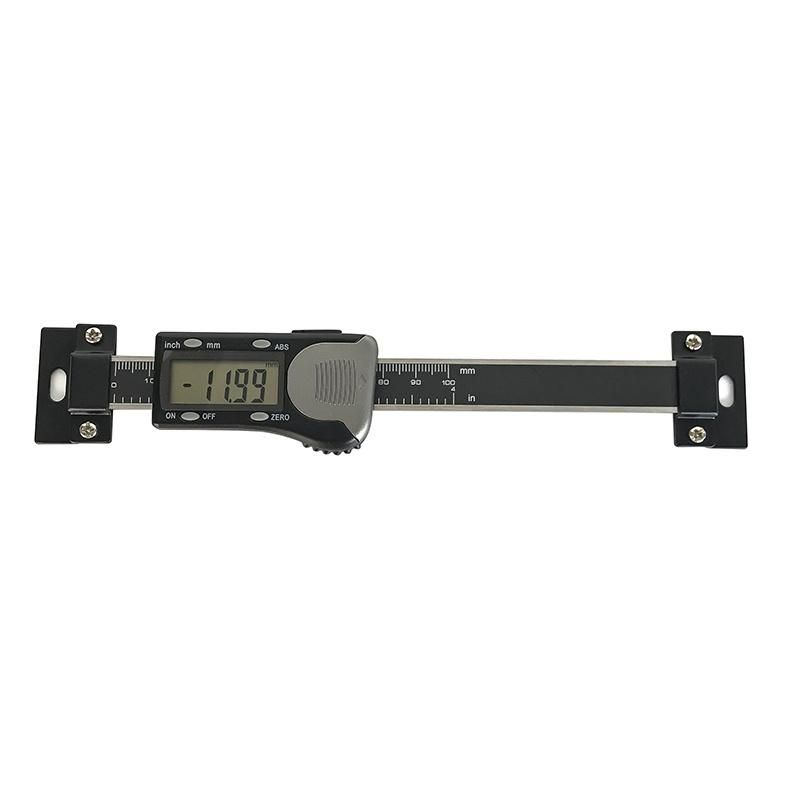

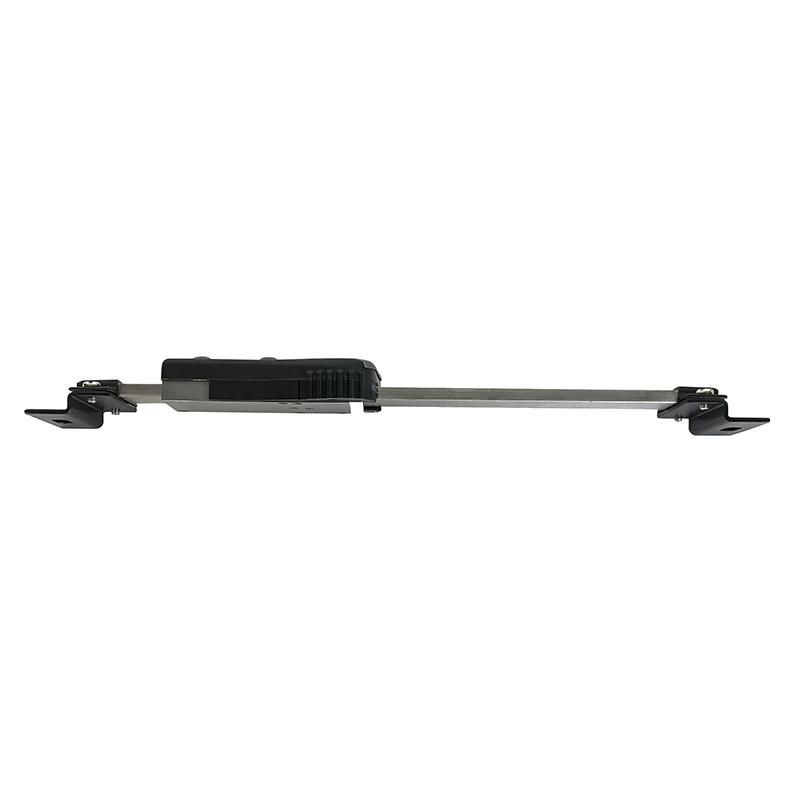

Horizontal Linear Digital Scale - 100mm / 4 Inch
QUICK OVERVIEW
100mm (4inch) Horizontal linear digital scales with mounting brackets. LCD readout display with metric/imperial reading- Key Features
- The scale is supplied with - slotted mounting brackets that clamp to each end of the scale. These can easily be removed allowing the scale to be cut to any length

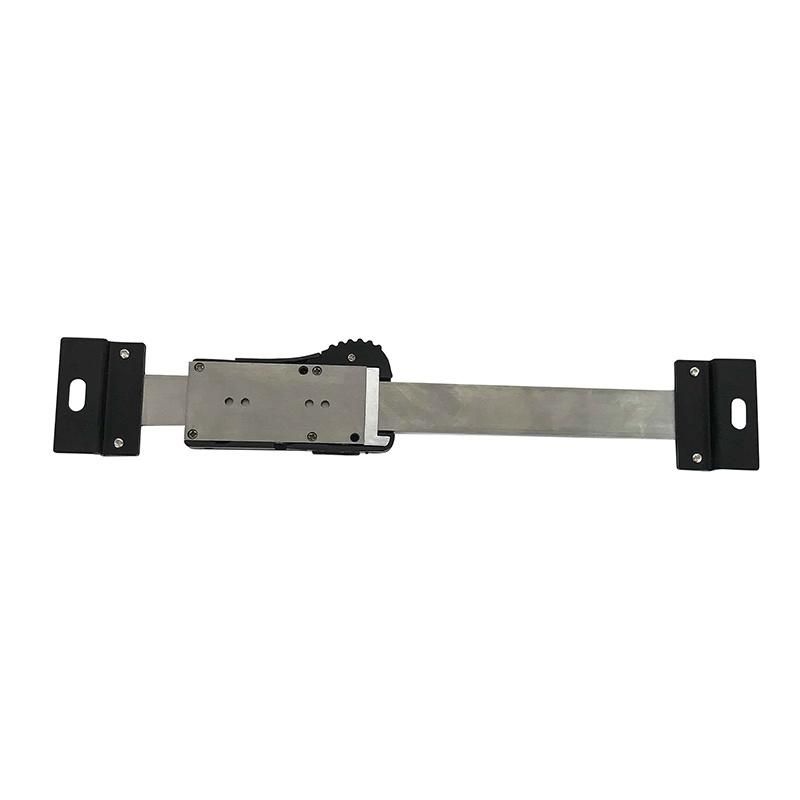

- Also supplied is a bracket for the rear of the reading head, attached by two M3 screws which are supplied
- Measurements - The digital scale allow direct conversion between metric and imperial reading. Using the inch/mm button on the reading head also included is a zero button and on/off button
- High Quality Scale - The Slide beam is made from hardened stainless steel with a printed metric and imperial scale on the top face
- Included With The Scale - Mounting brackets for the scale beam, Reading Head mounting bracket, Manual, Battery
