• Model NO.：KM-2341-6
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS
• Customized：Customized
• Measurement：Metric,Inch
• Protection Degree：IP65
• Transport Package：Aluminium Box
• Specification：DIN Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2341-6 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS Customized Customized Measurement Metric/Inch Protection Degree IP65 Transport Package Aluminium Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

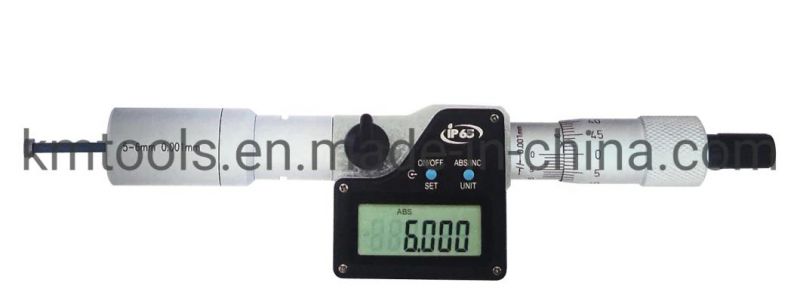

Product Description

Feature:
1.Protection level IP65.
2.Resolution: 0.001mm(metric);0.00005''(inch).
3.Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with an extension rod.
4.Carbide-tipped contact points. Ratchet stop.
5.Supplied with setting rings.
6.Range 2-6mm/0.08-0.28'': two point models for very small holes.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Resolution	Setting rings	L1
KM-2341-2.5	2~2.5mm	±0.004mm	0.001mm	φ2.5mm	12.5mm
KM-2341-3	2.5~3mm	±0.004mm	0.001mm	φ2.5mm	12.5mm
KM-2341-4	3~4mm	±0.004mm	0.001mm	φ4mm	22.5mm
KM-2341-5	4~5mm	±0.004mm	0.001mm	φ5mm	22.5mm
KM-2341-6	5~6mm	±0.004mm	0.001mm	φ6mm	22.5mm

Inch:

Order No.	Measuring Range	Accuracy	Resolution	Setting rings	L1
KM-2341-0.1	0.08~0.1″	±0.00016″	0.00005″	0.1″	0.5″
KM-2341-0.12	0.1~0.12″	±0.00016″	0.00005″	0.1″	0.5″
KM-2341-0.16	0.12~0.16″	±0.00016″	0.00005″	0.16″	0.9″
KM-2341-0.2	0.16~0.2″	±0.00016″	0.00005″	0.16″	0.9″
KM-2341-0.24	0.2~0.24″	±0.00016″	0.00005″	0.24″	0.9″
KM-2341-0.28	0.24~0.28″	±0.00016″	0.00005″	0.24″	0.9″
