• Model NO.：KM-2342-10
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS
• Customized：Customized
• Measurement：Metric,Inch Conversion
• Protection Degree：IP65
• Transport Package：Aluminium Box
• Specification：DIN Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2342-10 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS Customized Customized Measurement Metric/Inch Conversion Protection Degree IP65 Transport Package Aluminium Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

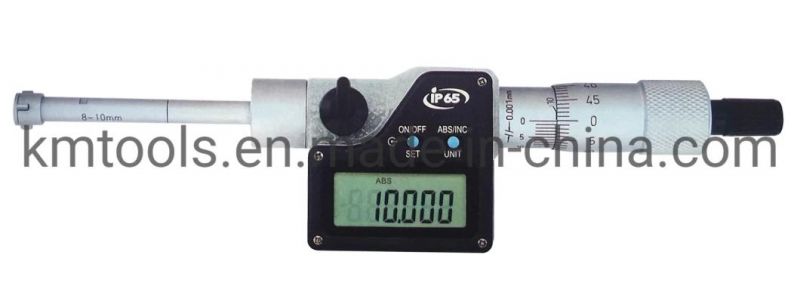

Product Description

Feature:
1.Protection level IP65.
2.Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with an extension rod.
3.Ratchet stop.
4.Supplied with setting rings.

Specification:
Metric/Inch:

Order No.	Measuring Range	Accuracy	Resolution	Setting rings	L1	A	Extension rods
KM-2342-8	6~8mm	±0.004mm	0.001mm	Φ6mm	53.5mm	0.5mm	100mm
KM-2342-10	8~10mm	±0.004mm	0.001mm	Φ8mm	53.5mm	0.5mm	100mm
KM-2342-12	10~12mm	±0.004mm	0.001mm	Φ10mm	53.5mm	0.5mm	100mm

Inch/Metric:

Order No.	Measuring Range	Accuracy	Resolution	Setting rings	L1	A	Extension rods
KM-2342-0.35	0.275~0.35″	±0.00016″	0.00005″	0.275″	2.18″	0.02″	4″
KM-2342-0.425	0.35~0.425″	±0.00016″	0.00005″	0.35″	2.18″	0.02″	4″
KM-2342-0.5	0.425~0.5″	±0.00016″	0.00005″	0.5″	2.18″	0.02″	4″
