• Model NO.：KM-2132-25
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Graduation：0.001mm
• Measurement：Metric,Inch
• Protection Degree：IP54
• Transport Package：ABS Box or Paper Box
• Specification：DIN Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2132-25 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Graduation 0.001mm Measurement Metric/Inch Protection Degree IP54 Transport Package ABS Box or Paper Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

Feature:
1.Resolution:0.001mm(Metric);0.00005''(Inch).

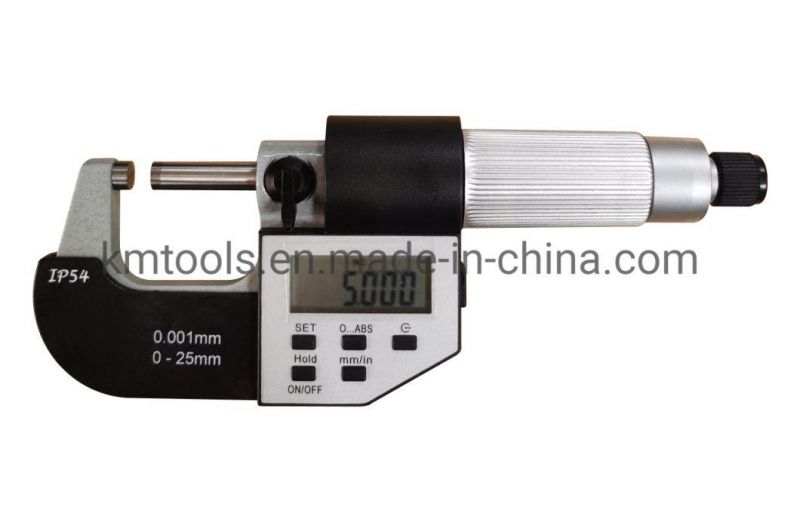

2. Large LCD for easy reading.
3. IP54 protection degree.
4. Display data is origin data of absolute measurement after changing battery.
5. Chrome-plated or painted frame.
6. Carbide measuring faces.
7. Criterion:DIN863/1, DIN40050/IEC529.

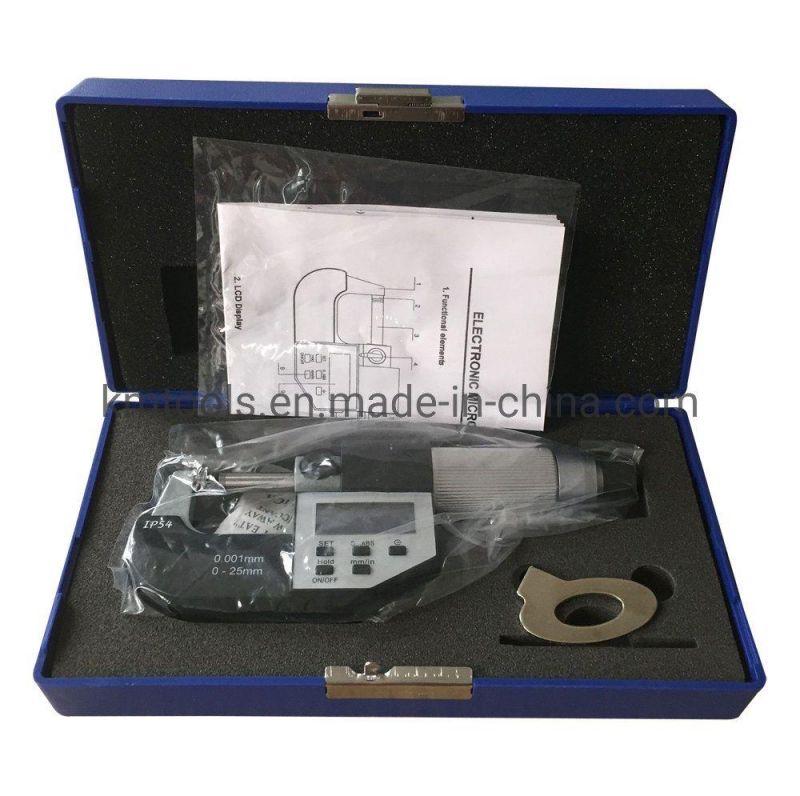

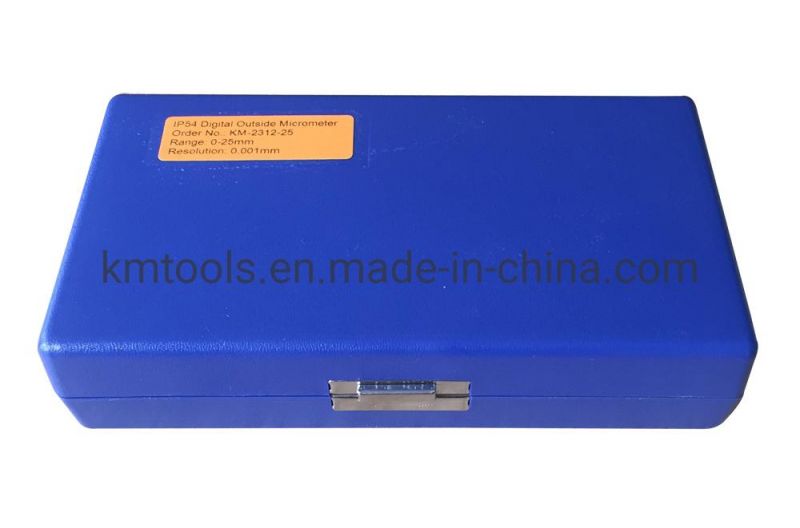

8. Supplied in the storage case.

Specification:
Metric/Inch:

Order No.	Measuring Range	Accuracy	Resolution
KM-2132-25	0-25mm/0-1"	±0.002mm	0.001mm
KM-2132-50	25-50mm/1-2"	±0.002mm	0.001mm
KM-2132-75	50-75mm/2-3"	±0.003mm	0.001mm
KM-2132-100	75-100mm/3-4"	±0.003mm	0.001mm
KM-2132-125	100-125mm/4-5"	±0.003mm	0.001mm
KM-2132-150	125-150mm/5-6"	±0.003mm	0.001mm
KM-2132-175	150-175mm/6-7"	±0.004mm	0.001mm
KM-2132-200	175-200mm/7-8"	±0.004mm	0.001mm

Inch/Metric:

Order No.	Measuring Range	Accuracy	Resolution
KM-2132-1	0-1"/0-25mm	±0.00008"	0.00005"
KM-2132-2	1-2"/25-50mm	±0.00008"	0.00005"
KM-2132-3	2-3"/50-75mm	±0.00012"	0.00005"
KM-2132-4	3-4"/75-100mm	±0.00012"	0.00005"
KM-2132-5	4-5"/100-125mm	±0.00012"	0.00005"
KM-2132-6	5-6"/125-150mm	±0.00012"	0.00005"
KM-2132-7	6-7"/150-175mm	±0.00016"	0.00005"
KM-2132-8	7-8"/175-200mm	±0.00016"	0.00005"
