• Model NO.：ME-IM-GAU-1-4
• Measure Method：Manual
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Customized：Non-Customized

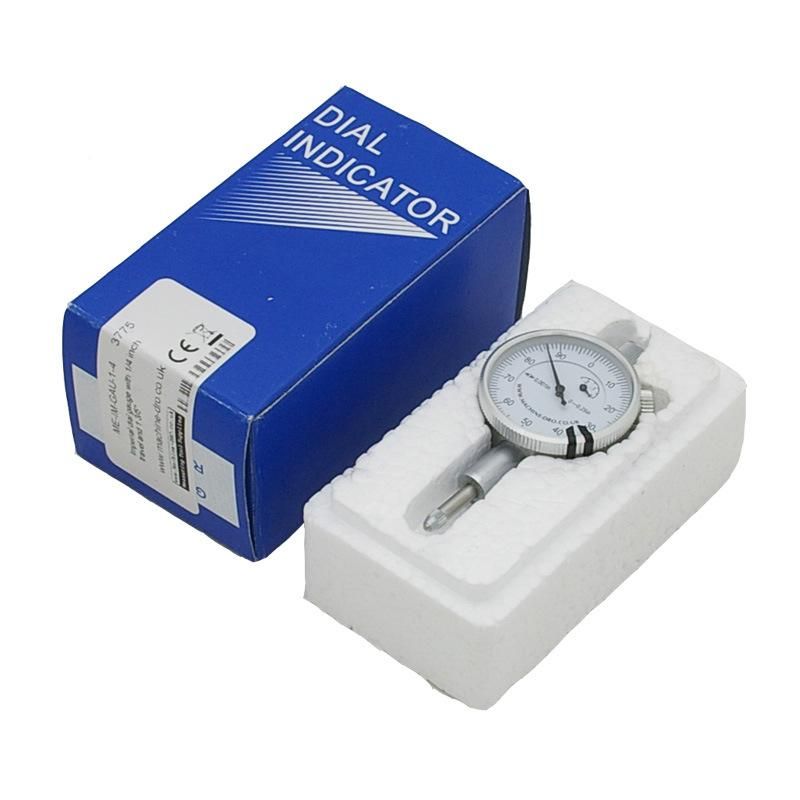

• Transport Package：Box
• Specification：Weight (grams): 105.0000
• Trademark：Machine-DRO
• Origin：China

Basic Info.

Model NO. ME-IM-GAU-1-4 Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Customized Non-Customized Transport Package Box Specification Weight (grams): 105.0000 Trademark Machine-DRO Origin China

Product Description

Key Features

• Plunger travel of 1/4 inch, with removable contact tip

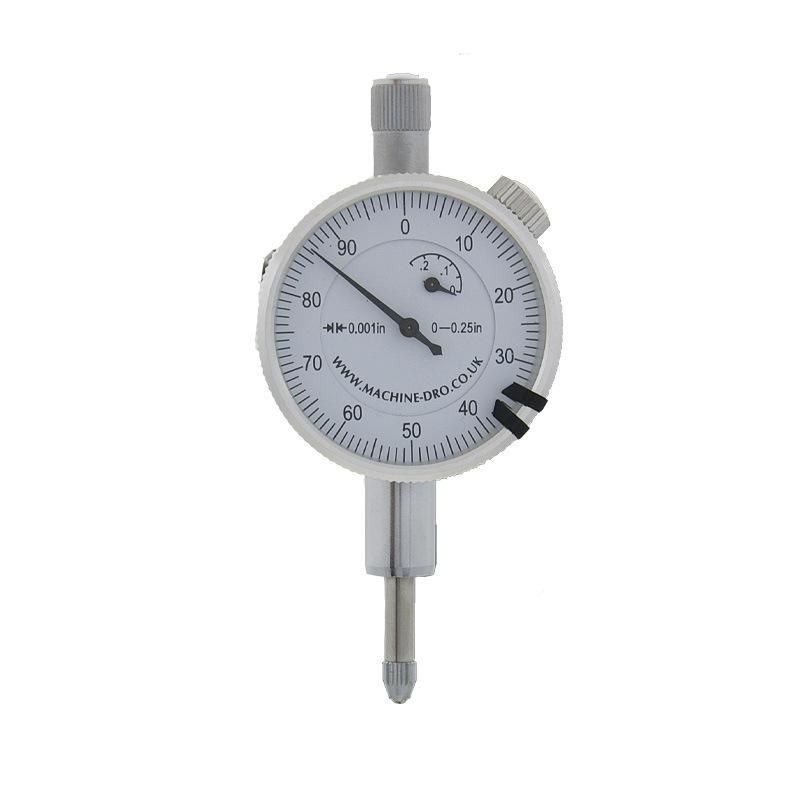

• Large Diameter Dial - 1 3/5inch diameter dial with clear 0.001inch graduations
• Adjustable dial face for zero setting with lock and tolerance pointers

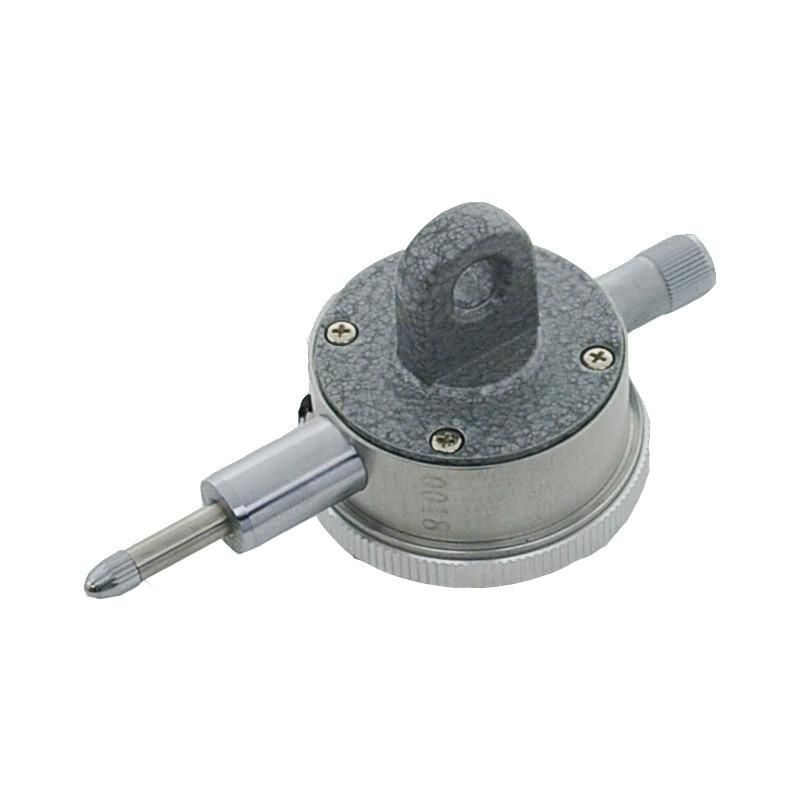

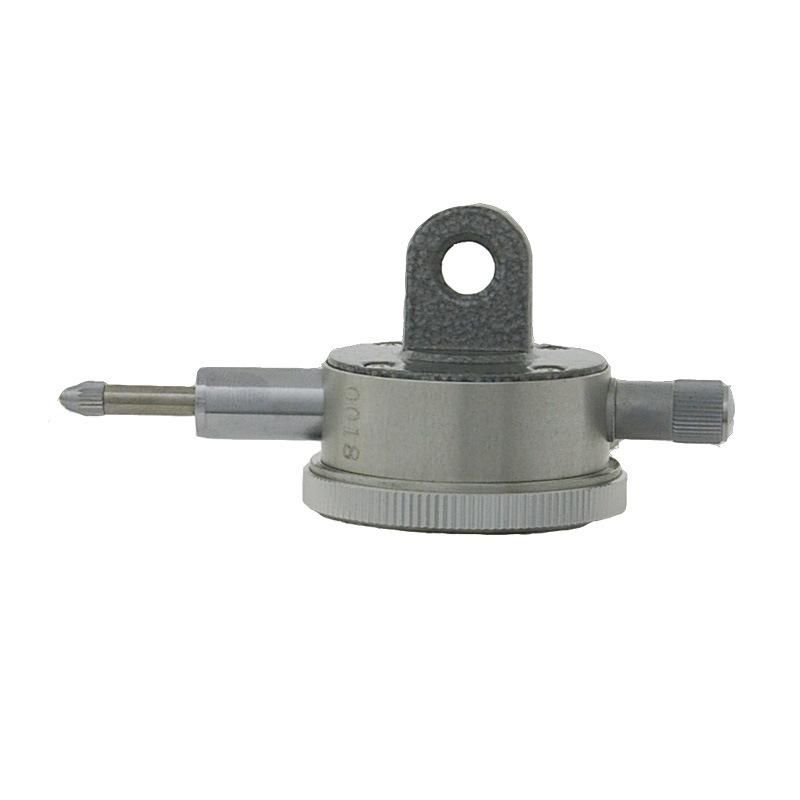

• Two Mounting Options - Mounting via the 3/8inch stem or mounting lug fitted to the back of the gauge with a 1/4inch diameter mounting hole
• Range - 0-1/4 inch
• Dial Diameter - 1 1/2 inch
• Graduation - 0.001 inch
• Stem Diameter - 3/8 inch
• Lug Mounting Diameter - 1/4 inch
• Overall Length - 3 3/10 inch
• 0-1/4 inch Range Imperial Dia



  l Indicator Gauge with 1 1/2 inch diameter dial.
