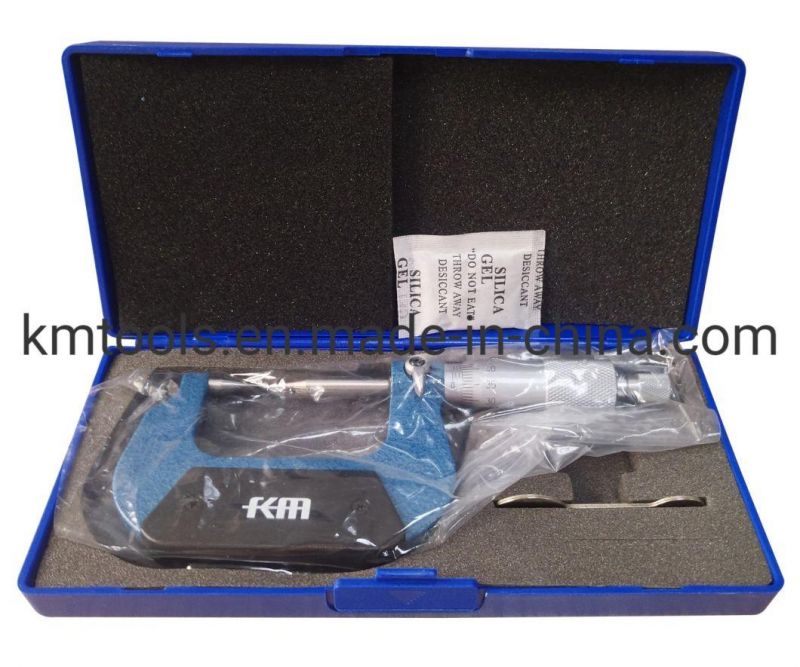

0-25mm Point Micrometer with 0.01mm Graudation
Deko Corporation- Type：Micrometer
- Measurement Object：Measuring Drills, Grooves and Hard-to-Reach Dimens
- Range：0-25mm
- Resolution：0.01mm
- Precision：0.004mm
- Measure Method：Manual
Base Info
- Model NO.：KM-2241-25
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measurement：Metric
- Transport Package：ABS Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-2241-25 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Transport Package ABS Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1.Graduation:0.01mm(Metric);0.0001″(Inch).
2.Ratchet stop.
3.Pointed spindle and anvil for measuring drills, grooves and hard-to-reach dimensions.
4.Carbide-tipped measuring faces.
5.15°and30°measuring points are available.
6.Supplied in the storage case.
Specification:
Metric:
| Order No. | Measuring Range | Accuracy | Graduation |
| KM-2241-25 | 0~25mm | ±0.004mm | 0.01mm |
| KM-2241-50 | 25~50mm | ±0.004mm | 0.01mm |
| KM-2241-75 | 50~75mm | ±0.005mm | 0.01mm |
| KM-2241-100 | 75~100mm | ±0.005mm | 0.01mm |
| Order No. | Measuring Range | Accuracy | Graduation |
| KM-2241-1 | 0~1″ | ±0.00016″ | 0.001″ |
| KM-2241-2 | 1~2″ | ±0.00016″ | 0.001″ |
| KM-2241-3 | 2~3″ | ±0.00020″ | 0.001″ |
| KM-2241-4 | 3~4″ | ±0.00020″ | 0.001″ |
