• Model NO.：XK315A1GB-3
• Application：Electronic Platform Scale and Weighing Scale
• Certification：OIML, Ce
• Customized：Customized
• Screen：6-Digit 20.2mm Green LED
• Material：Stainless Steel Housing
• Power：6V 4ah Battery
• Transport Package：Standard Carton Packing
• Specification：260*222*161mm
• Trademark：CAISUN
• Origin：China
• HS Code：9026209090
• Production Capacity：30000PCS,Year

Basic Info.

Model NO. XK315A1GB-3 Application Electronic Platform Scale and Weighing Scale Certification OIML, Ce Customized Customized Screen 6-Digit 20.2mm Green LED Material Stainless Steel Housing Power 6V 4ah Battery Transport Package Standard Carton Packing Specification 260*222*161mm Trademark CAISUN Origin China HS Code 9026209090 Production Capacity 30000PCS/Year

Product Description

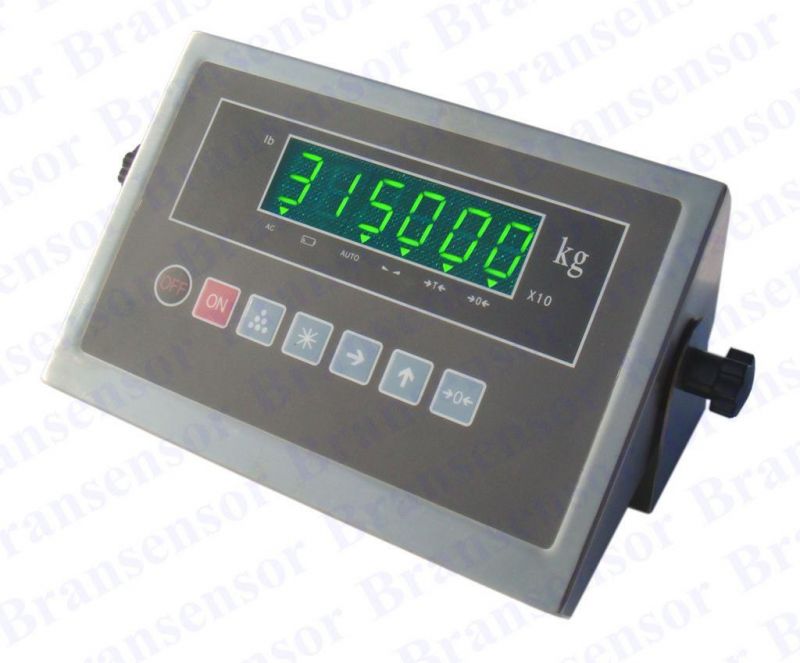

Brans stainless steel housing weighing indicator for platform scales(XK315A1GB-3  )


1.Basic information

Model:XK315A1GB-3
Stainless steel housing
6-digit 20.2mm green LED
Dimensions:260×222×161mm
Applications:Electronic platform scale, weighing scale, etc.
PACKAGE
Quantity:12 PCS per Carton
Dimension:48x59x60cm
Weight:About 25 kg

2. Functions and Features

1.Operating temperature: 0ºC to 40ºC2.Storage temperature: -25ºC to 55ºC3.Relative humidity:≤ 85% non-condensing4.30 hours of full charge battery operation5.Drive up 4X350Ω or 8X700Ω load cell6.Manual/Automatic accumulation7.Programmable zero tracking8.Programmable digital filter9.Selectable kg and lb10.RS-232 serial interface11.Accuracy can be increased ten times12.Animal weighing13.Hold function14.Counting function15.Printer 16. Power: 6V 4A battery

3. Optional

RS485 serial interfaceTwo set point functionFour set point function4-20mA Analog current output function
Mechanical scale
Wireless connectionBlue tooth connection


This indicator could be used for weighing scales like electric platform scales, hopper scales or other weighing scales. We also could use it for force measurement and industry progress controlling. bransensor.en.made-in-china.com
