• Model NO.：LP7530
• Customized：Customized
• Item Name：4~20mA Weighing Controller
• Ad Conversion：24 Bit
• Display：15mm Height, 6 Digits
• Performance：6 X 350ohm Load Cell
• Transport Package：Carton
• Specification：45mm x 92mm
• Trademark：LOCOSC
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：50000PCS,Years

Basic Info.

Model NO. LP7530 Customized Customized Item Name 4~20mA Weighing Controller Ad Conversion 24 Bit Display 15mm Height, 6 Digits Performance 6 X 350ohm Load Cell Transport Package Carton Specification 45mm x 92mm Trademark LOCOSC Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 50000PCS/Years

Product Description

Specifications

weighing controller indicator
4~20mA,0~5V,1~5V output;
RS485 interface

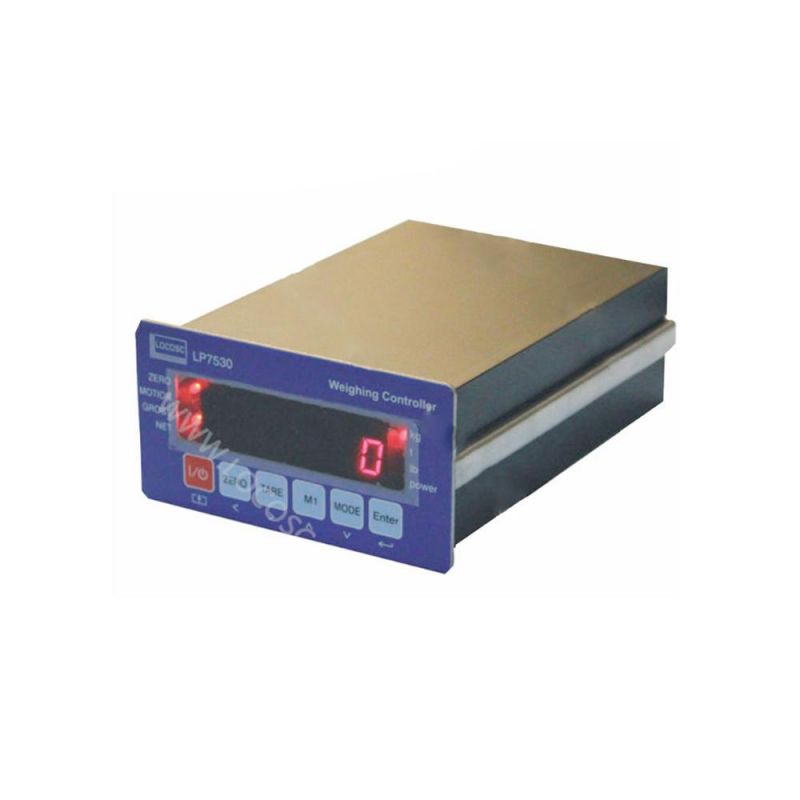

4~20mA weighing controller indicator

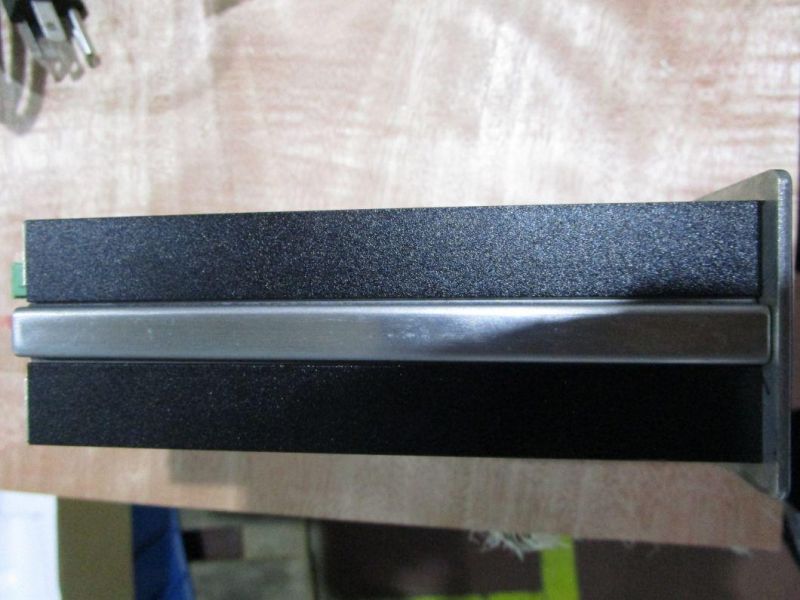

Aluminum alloy housing, application for weighing control, can be connect with PLC,PC & DCS system.



Technique

• 10mm LED display
• Accuracy class:OIML   III
• 24 bits A/D convert, conversion rate is more than 120 times/s
• Max division:30,000, inter-code:2,000,000
• Min resolution:0.5μV/d
• Range of signal:-30mv~30mv
• Load-cell ex supply:5VDC
• Can connect 6pcs 350 Ω load-cells
• Power supply: AC110~240V or DC 24V
• Work temp.:-10°C~40°C

Function:

• Weighing, zero, tare, fixed value
• 4 in/4 out card,RS232,RS485 RTU
• Options:4~20mA,profibus-DP

Dimensions(mm):

•  product dimensions: 45*92*153
•   panel opening dimensions: 46*93
