Weighing Wheel Axle Aircraft Truck Scale
Ningbo Jiangbei Shiquan Gifts Co., Ltd.- Structure：Mechanical and Electrical Scale
- Sensor：Analogue Scale
- Installation：Weighbridge
- Automation：Automation
- The Weighing Method：Static Truck Scale
- Scale Structure：Channel-Section Steel
Base Info
- Model NO.：AS011C 3pcs
- Operating Environment：Explosion-proof Loadometer
- Lightning Protection：With Lightning Protection
- Display：LED or LCD
- Material：Aluminum-Alloy
- Service：OEM&ODM
- Power Supply：110V , 220V or According to Customer
- Production Time：25~45 Days
- Weighing Capacity：10,15,20t
- Defend Grade：IP66
- Net Weight：28kg
- Transport Package：Carton, Wooden Box, Tool Box
- Trademark：SAINTBOND truck axle scale
- Origin：Zhejiang, China
- Production Capacity：8500 Sets Per Month
Description
Capacity: 1.wheel weight:≤10/15/20/30T 2.Axle weight:≤20/30/40/60T
3. Total weight ≤1000T(≤18 axle)
Dynamic comprehensive error(%F.S): 3 (5~10km/h)
Static comprehensive error(%F.S): 0.3
Product weight:1. weighing pad:45Kg /pcs 2.indicator:5.5Kg/pcs
Product size:1.Effective weighing area:1000×500×22.5mm
2. indicator's size:330×310×150mm
Defend grade: 1.weighing pad:IP66 2.indicator:IP65
Deposit:1.Temp. Range:-30~+80ºC 2. Relative Humidity:<90%RH

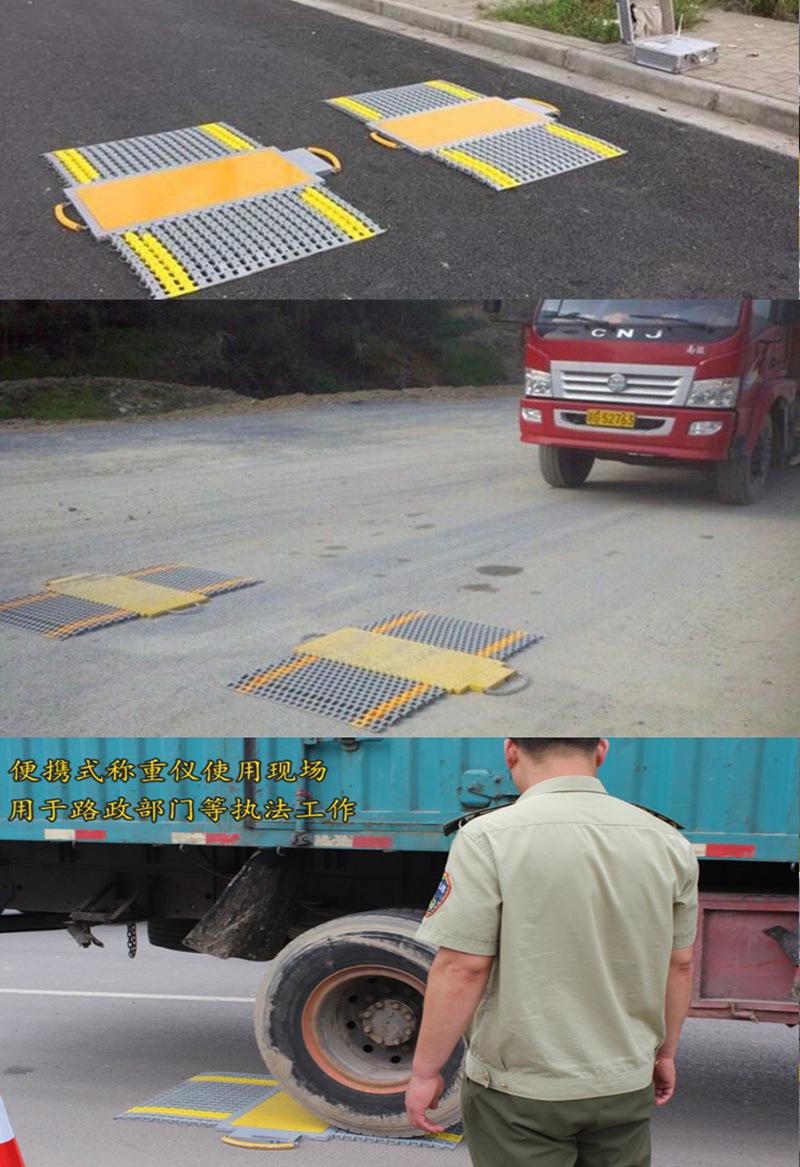

Vehicle axle weight is measured axle by axle, and the max number is unlimited.
Ultra high frequency ensures better anti-electromagnet ability.
Floating technology is adopted to remove zero drift
Digitization menu, easy operation
Micro printer is embedded in the wireless instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization
RS232 port is used to communicate with PC.
AC/DC, real time battery capacity indicating. The battery can be used for 40 hours on end. Automatic shut off;
