• Model NO.：AS011W 6pcs
• Operating Environment：Explosion-proof Loadometer
• Signal Output Mode：Wireless and Wired Options
• Display：LED or LCD
• Material：Aluminum-Alloy
• Service：OEM&ODM
• Power Supply：110V , 220V or According to Customer
• Production Time：25~45 Days
• Weighing Capacity：10,15,20t
• Defend Grade：IP66
• Net Weight：28kg
• Transport Package：Carton, Wooden Box, Tool Box
• Trademark：SAINTBOND truck axle scale
• Origin：Zhejiang, China
• Production Capacity：8500 Sets Per Month

Capacity: 1.wheel weight:≤10/15/20/30T   2.Axle weight:≤20/30/40/60T
3. Total weight ≤1000T(≤18 axle)
Dynamic comprehensive error(%F.S): 3 (5~10km/h)
Static comprehensive error(%F.S): 0.3
Product weight:1. weighing pad:45Kg /pcs  2.indicator:5.5Kg/pcs
Product size:1.Effective weighing area:1000×500×22.5mm
2. indicator's size:330×310×150mm
Defend grade: 1.weighing pad:IP66  2.indicator:IP65
Deposit:1.Temp. Range:-30~+80ºC  2. Relative Humidity:<90%RH
Vehicle axle weight is measured axle by axle, and the max number is unlimited.
Ultra high frequency ensures better anti-electromagnet ability.
Floating technology is adopted to remove zero drift
Digitization menu, easy operation
Micro printer is embedded in the wireless instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization
RS232 port is used to communicate with PC.
AC/DC, real time battery capacity indicating. The battery can be used for 40 hours on end. Automatic shut off;Description:
Aluminum-alloy; Ultra thin weighpad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;
Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-padsare
connected together.

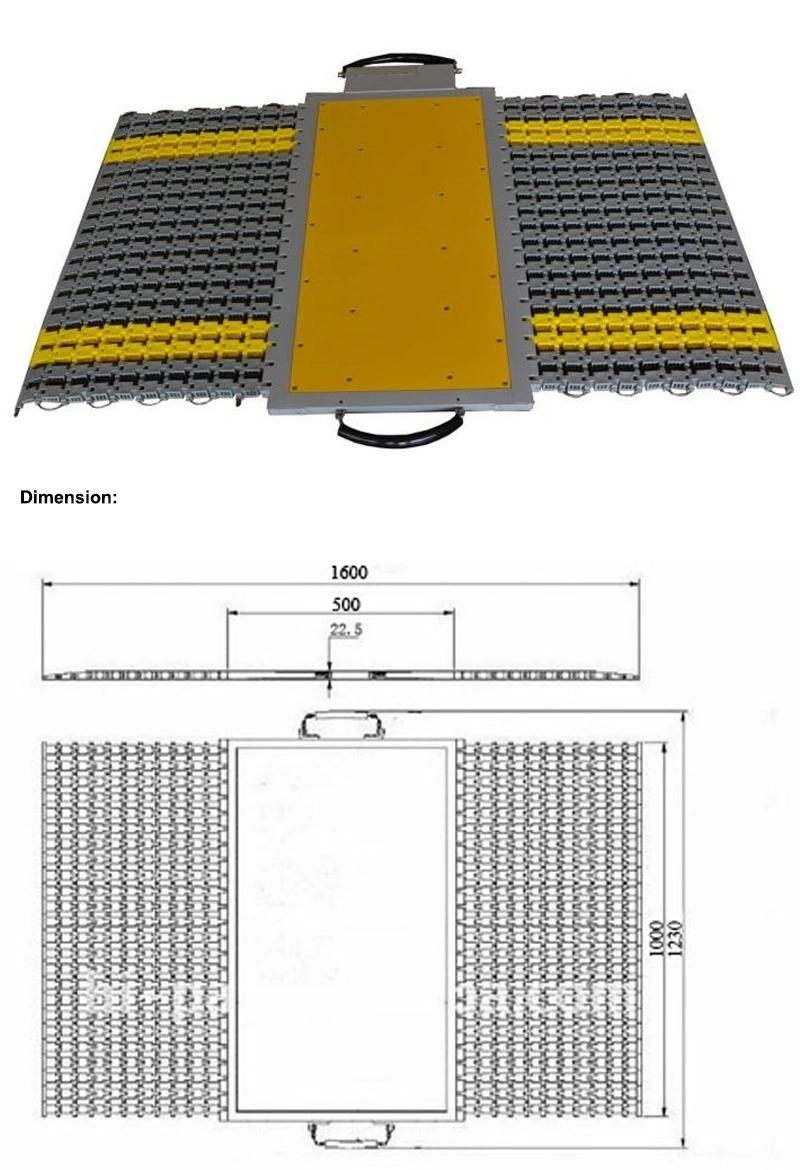

Dimension:

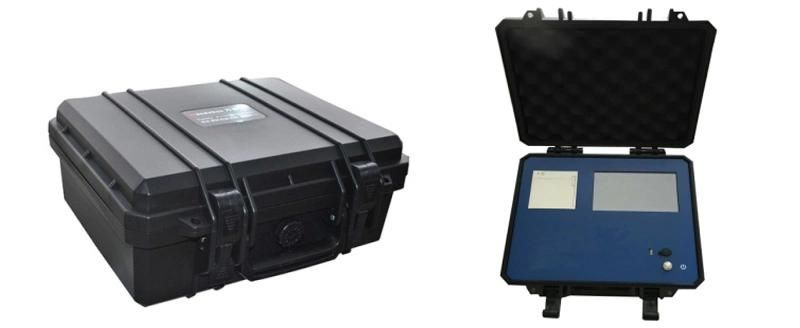

The Features of Wireless Weighing Indicator:
Excellent weighing function and high precision;
Touch screen LCD Monitor
Backlight lattice LCD, Clear both in daytime and nighttime;
Digital wireless technology is adopted, so the portability is largely increased.
Ultra high frequency ensures better anti-electromagnet ability.
Double LCDs are used.
Measure and display vehicle velocity(km/h).
Floating technology is adopted to remove zero drift.
Numbered options.
Vehicle axle weight is measured axle by axle, and the max number is unlimited.
Wireless transmission removes cable connection.
Micro printer is embedded in the wireless instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight,
truck weight, overload and executive organization.
USB port is used to communicate with PC.
Can conveniently input full vehicle license number with letters;
Can put in the name of the testing organization and operators;
Can store as many as 10000 vehicle testing records;
Mature inquiry and statistic function;
AC/DC, real time battery capacity indicating. The battery can be used for 40 hours on end. Automatic shut off;
The auto power supply system can be used for providing electricity and charging;
The instrument can work independently. And it also can upload testing data to computers.
Main Technical Index;
(1)full-scale temperature coefficient: 5ppm/ºC;
(2) inner resolution: 24 bits;
(3) Sampling speed: 200 times/sec
(4) the speed of display renewal: 12.5times/sec;
(5) system non-linearity <0.01%;
(6) impulse source of sensor: DC 5V±2%;
(7) operating temperature range: 0ºC--40ºC;
(8)Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing);
(9) power supply: built-in 8.4V/20AH leading acid accumulator, and can connect with DC source (8.4V/3A)
