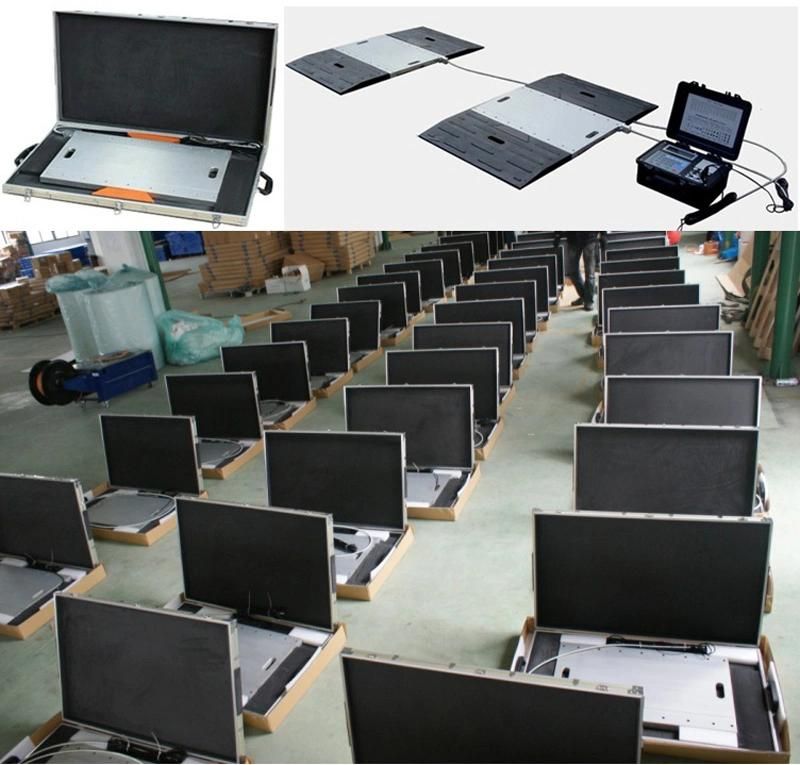

Wireless Portable Wheel Weighing Truck Axle Scale
Ningbo Jiangbei Shiquan Gifts Co., Ltd.- Structure：Mechanical and Electrical Scale
- Sensor：Analogue Scale
- Installation：Weighbridge
- Automation：Automation
- The Weighing Method：Static Truck Scale
- Scale Structure：Channel-Section Steel
Base Info
- Model NO.：AS021W 4pcs
- Operating Environment：Explosion-proof Loadometer
- Signal Output Mode：Wireless and Wired Options
- Display：LED or LCD
- Material：Aluminum-Alloy
- Service：OEM&ODM
- Power Supply：110V , 220V or According to Customer
- Production Time：25~45 Days
- Weighing Capacity：10,15,20t
- Defend Grade：IP66
- Net Weight：28kg
- Transport Package：Carton, Wooden Box, Tool Box
- Trademark：SAINTBOND truck axle scale
- Origin：Zhejiang, China
- Production Capacity：8500 Sets Per Month
Description
Basic Info.
Model NO. AS021W 4pcs Operating Environment Explosion-proof Loadometer Signal Output Mode Wireless and Wired Options Display LED or LCD Material Aluminum-Alloy Service OEM&ODM Power Supply 110V , 220V or According to Customer Production Time 25~45 Days Weighing Capacity 10/15/20t Defend Grade IP66 Net Weight 28kg Transport Package Carton, Wooden Box, Tool Box Trademark SAINTBOND truck axle scale Origin Zhejiang, China Production Capacity 8500 Sets Per MonthProduct Description

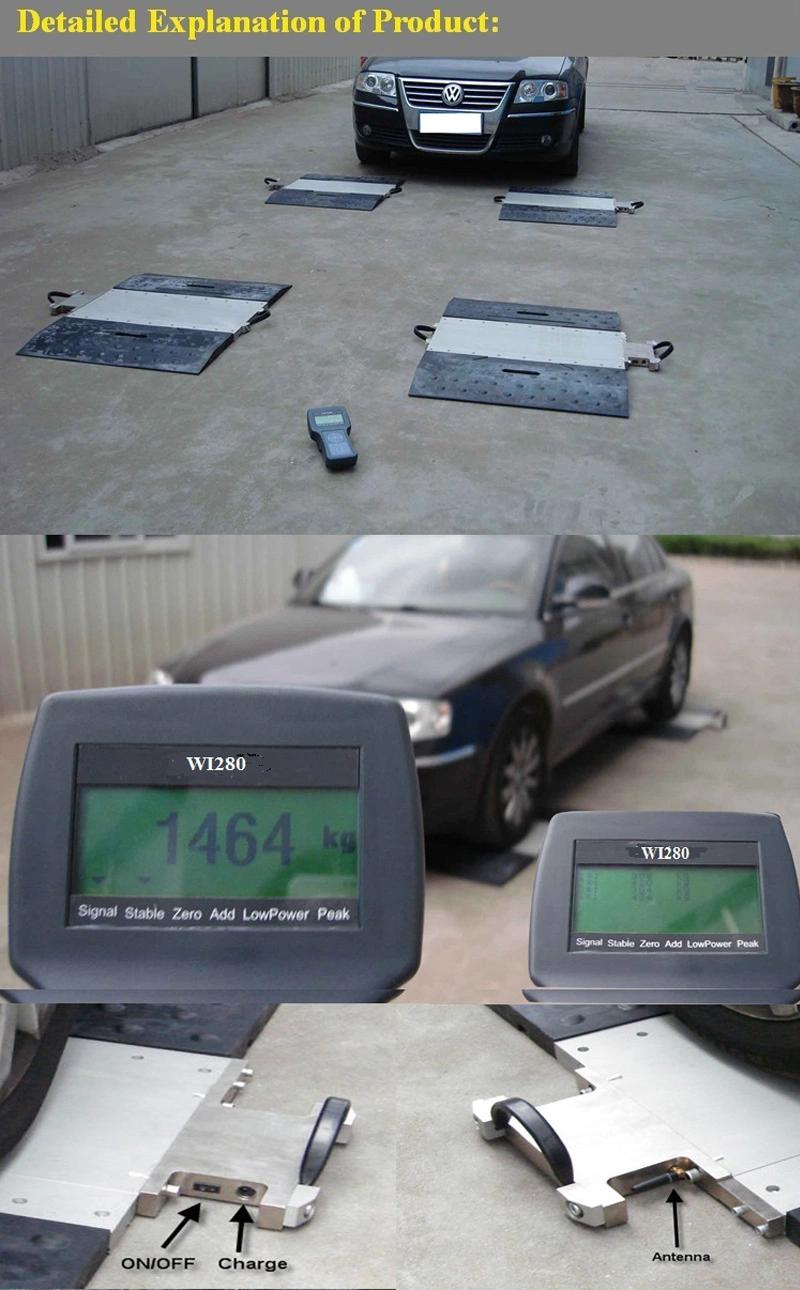

Features:
Light in weight, and convenient transportation.
Integral flat plate construction, high frequency in dynamic response, and high precision.
Applied special treatment, offering high protection class that are suitable for all kinds of environments.
Adopted special material in aero-industry, with good anti-over loading ability.
Assembled with rubber handles, avoided destroying of the handles.
Provided with spring tube, protecting the cables from being crushed.
Mounted with connector and protection block, easy for changing of cables.
Completed with dovetail approach, offering tight connection of the approach and the scale.
Easy for loading on/off of the vehicles.

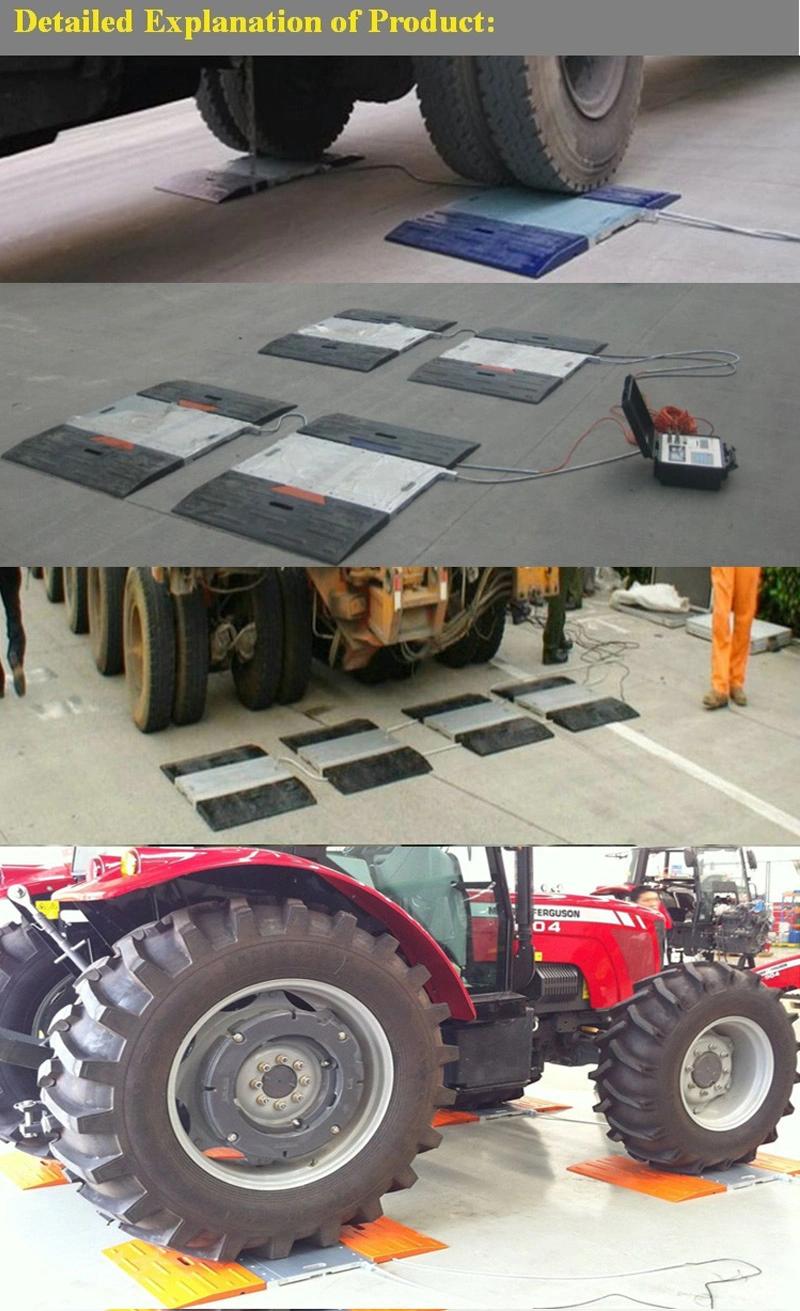

Applications:
Load control and weighing for the vehicles.
Measuring the weight and barycenter of aeroplane.
Measuring weight for special purpose.
Specification:
| Capacity: | 0-15t/per weighing pad |
| Wireless Frequency: | 470MHz |
| Wireless Distance: | Min:800m(default) |
| A/D Conversion Rate: | ≥50times/seconds |
| Operating Temp. Range: | -20~+80ºC |
| Operating Humidity: | ≤85%RH under 20ºC |
| Battery Life: | ≥50 hours |
| Non-Linearity: | 0.01%F.S |
| Stable Time: | ≤5 seconds |
| Citation: | GB/T7551-1997/ OIML R60 |
