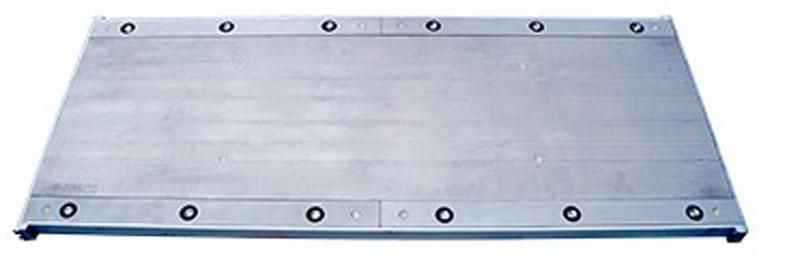

Bending Sensor Weighing Axle Apparatus Scale
Ningbo Jiangbei Shiquan Gifts Co., Ltd.- Structure:Mechanical and Electrical Scale
- Sensor:Analogue Scale
- Installation:Weighbridge
- Automation:Automation
- The Weighing Method:Static Truck Scale
- Scale Structure:Channel-Section Steel
Base Info
- Model NO.:H15C2
- Operating Environment:Explosion-proof Loadometer
- Signal Output Mode:Wireless and Wired Options
- Material:Aluminum-Alloy
- Service:OEM&ODM
- Power Supply:110V , 220V or According to Customer
- Production Time:25~45 Days
- Weighing Capacity:10-15t
- Defend Grade:IP68
- Transport Package:Carton, Wooden Box, Tool Box
- Trademark:SAINTBOND truck axle scale
- Origin:Zhejiang, China
- Production Capacity:8500 Sets Per Month
Description
Basic Info.
Model NO. H15C2 Operating Environment Explosion-proof Loadometer Signal Output Mode Wireless and Wired Options Material Aluminum-Alloy Service OEM&ODM Power Supply 110V , 220V or According to Customer Production Time 25~45 Days Weighing Capacity 10-15t Defend Grade IP68 Transport Package Carton, Wooden Box, Tool Box Trademark SAINTBOND truck axle scale Origin Zhejiang, China Production Capacity 8500 Sets Per MonthProduct Description
Features:High frequency in dynamic response, and high precision;
Offering wide weighing range and good anti-over loading ability;
Realization of both static calibration and weighing;
With protection class of IP68;
Applied special treatment, offering high protection class that are difficulty to be damaged;
Continuously working in -40ºC~+80ºC, difficulty to be effected by the temperature changes;
Patented technology offering double output channels, with higher reliability;
Specially thin structure, convenient for installation;
Suitable for using in parallel, avoiding dead zone in weighing;
Applications:
Axles and/or wheels inspection of vehicles on road orbridges;
Inspecting and controlling vehicles load through the computer system, served as the charging standards for the transportation administration, and also scientific resources for traffic investigation, data collecting and statistics;

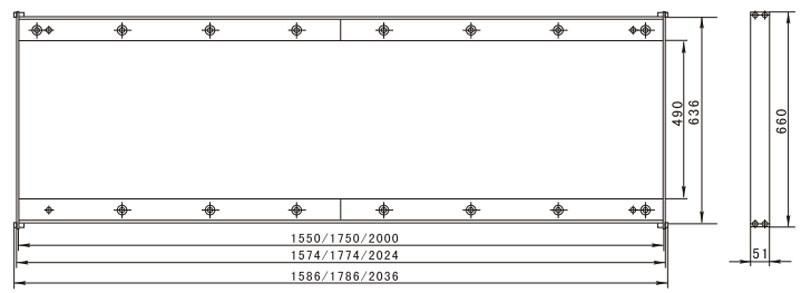

Dimensions(unit:mm):Technical Parameter:
Output sensitivity: | 0.8mV/V | Temperature, compensated: | :-10~+55°C |
Horizontal consistency error: | 2 (4)%ld | Temperature, operating: | :-45~+80°C |
Non-linearity : | 2.5%ld | Excitation, recommended: | 9~15VDC |
Repeatability: | 0.1%FS | Excitation, Max.: | 20VDC |
Input resistance: | 700 ±7Ω | Safe overload: | 120%FS |
Output resistance: | 700 ±7Ω | Ultimate overload: | 150%FS |
Insulation resistance: | ^5000(100VDC)MΩ | Protection class | IP68 |
Zero balance: | 4~10%FS | Cable Spec.: | 4-wire cable |
Temp. effect on sensitivity: | 0.1%FS/10°C | Max. load for single point: | 10t |
Temp. effect on zero: | 0.2%FS/10°C | Rated capacity: | 15t |
