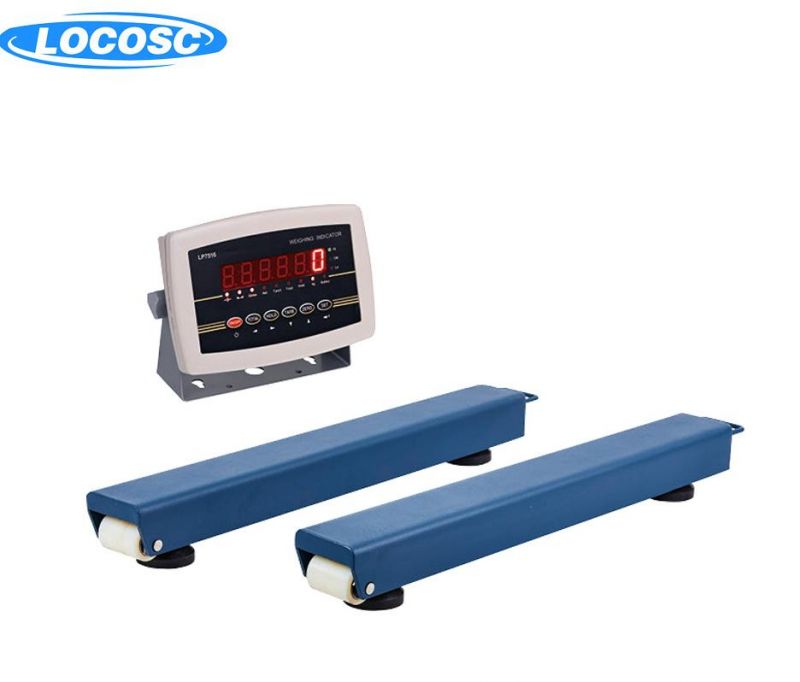

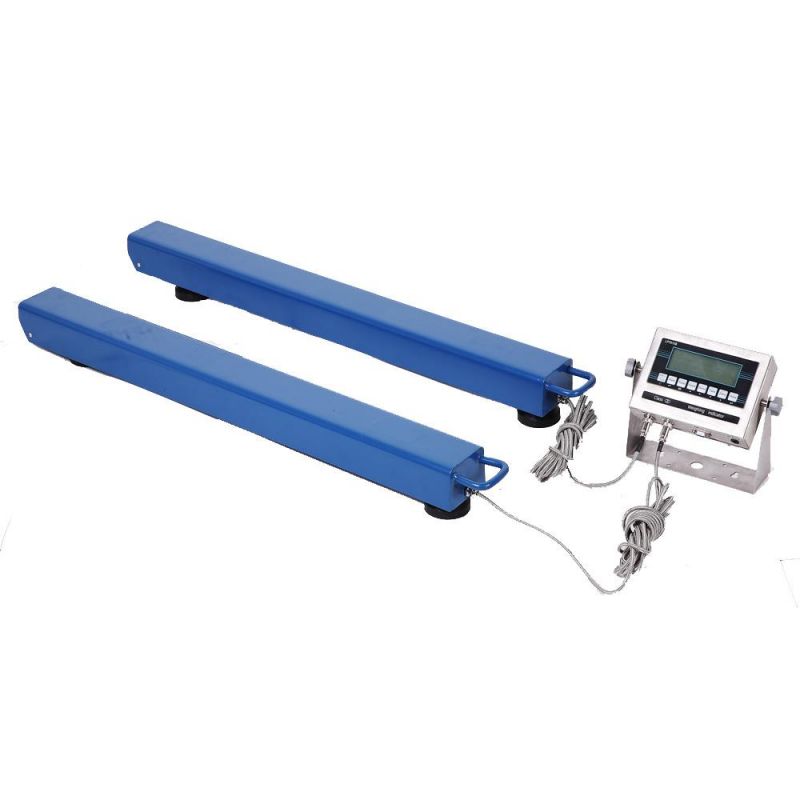

Mild Steel Portable Weighing Beam Bar Scale
Locosc Ningbo Precision Technology Co., Ltd.- Accuracy：3000e
- Weighing：>300kg
- Display Type：LED
- Location：Platform Scale
- Material：Stainless Steel
- Measure Method：Automatic
Base Info

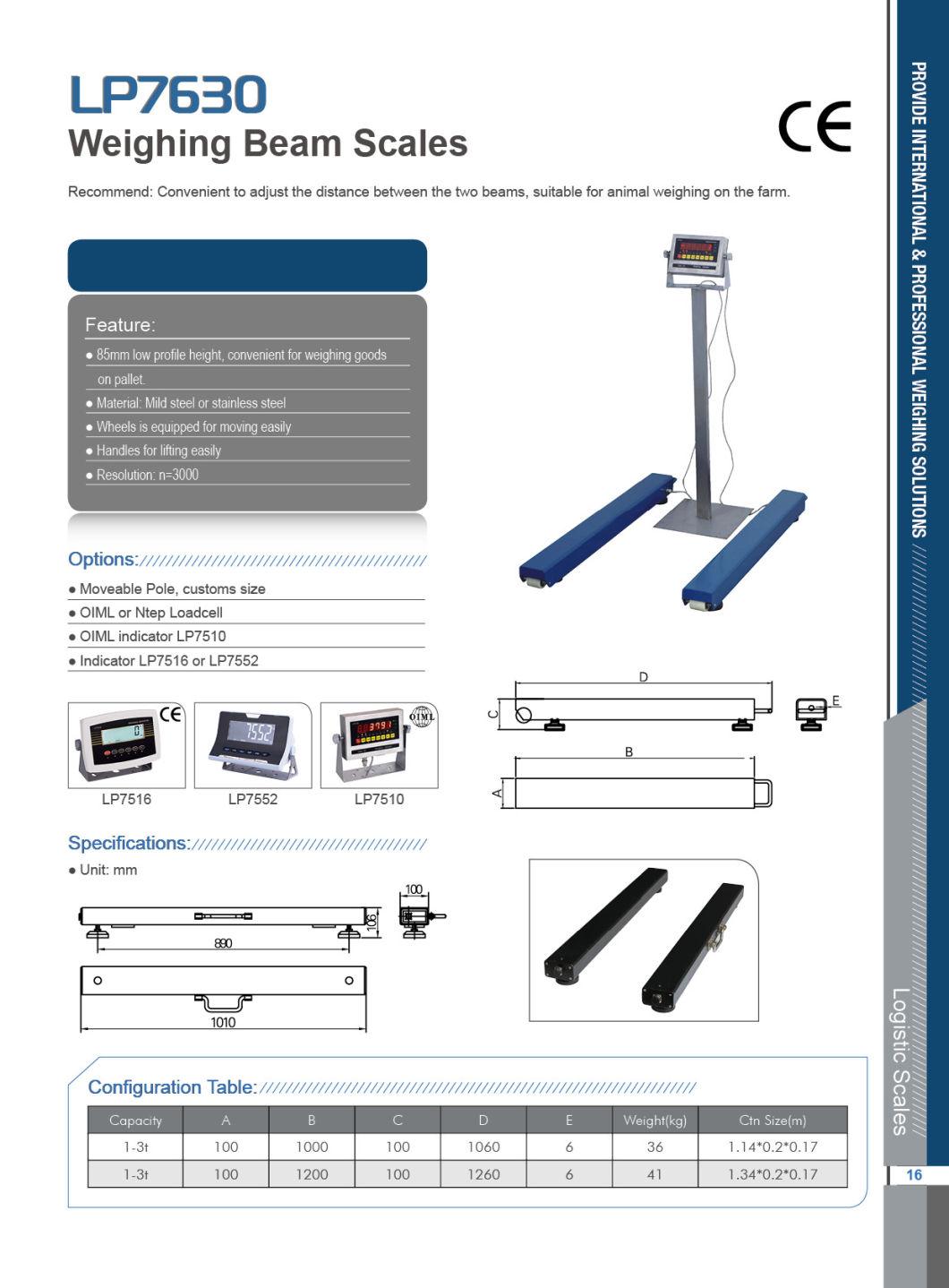

- Model NO.：LP7630
- Application：Industrial Scales
- Function：Weighing Scale
- Structure：Electronic Scale
- Shape：Square
- Accuracy Class：III
- Display：6-Digit 20mm LED or 25mm LCD with Backlight
- Operating Temperature：-10ºC ~ +40ºC
- Humidity：≤85%Rh
- Power Supply：AC110,220V 50~60Hz, DC6V,4ah Lead Acid Battery
- Rated Load：1~3t
- Communication Interface：RS232,RS485 (Optional)
- Large Screen Display Interface：Serial RS232 (Optional)
- Analog Output：0-20mA,4-20mA,0-5V (Optional)
- Relay Output：4 Relay Outputs (Optional)
- Resolving：N=3000
- Capacity：500kg,1000kg,2000kg
- Transport Package：Carton
- Trademark：LOCOSC
- Origin：Zhejiang, China (Mainland)
- HS Code：8423829090
- Production Capacity：50000 Pieces, Year
Description

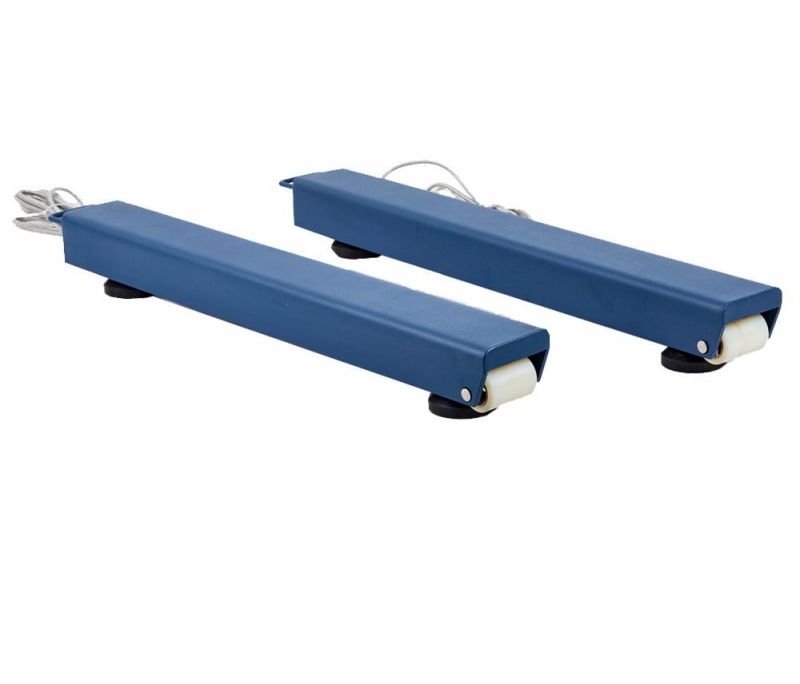

Structural features:
1. U-shaped steel structure with M12 fixed feet;
2. weighing beams are equipped with handles and rollers, easy to move;
3. carbon steel surface is treated with shot blasting, anti-corrosion;
4. stainless steel surface is polished and wire drawn;
5. four alloy steel load cells.

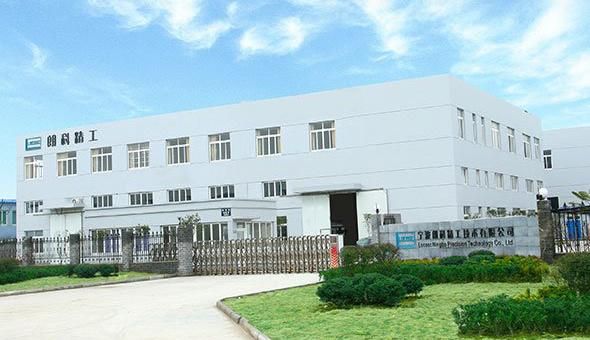

About Us
LOCOSC is a manufacturer of weighing apparatus and precision instruments for professional use. We focus on the research and development, manufacturing, solutions, sales and after-sales services of weighing equipment. From high precision micro-analysis to more than 100 tons of weighing application, LOCOSC specializes its products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. With a lean and efficient team, superior quality products, global services and perfect solutions, LOCOSC is helping customers around the world increase productivity, create value and cope with challenges easily in their work. Main Products include: bench scales, floor/platform scales, crane scales, weighing indicators, load cells, truck scales.
FAQ
1: Do you have stock?
Most of products are under regular production, we can make delivery immediately if we specific one in stock. Some new design products need time to prepare and test in first time, after that in next order production it will faster or in stock.
2: Can you do OEM or have customer logo/company name to be printed on products and packages?
Yes, We can do OEM for customer. For example, we can design the indicator keypad with customer's logo, also can print logo on the package carton.
3: Can you send samples?
Yes, we can send samples for customer to check the quality.
4: Is the sample free or not?
The samples need sample fee and may be higher than normal unit price. But sometimes we can return the sample fee after placing the big order.
5: How much the freight fee of samples?
The freight fee depends on the weight and packing size and destination from our factory to your location. We will check with each express company first, then work out the cheaper and best way to ship the samples.
6: How long can we expect to get the sample?
The samples will be ready for delivery in 20-45 days. The samples will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-7 days.
