• Model NO.：KM-21328-75
• Measure Method：Manual
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric,Inch
• Transport Package：ABS Box
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-21328-75 Measure Method Manual Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric/Inch Transport Package ABS Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

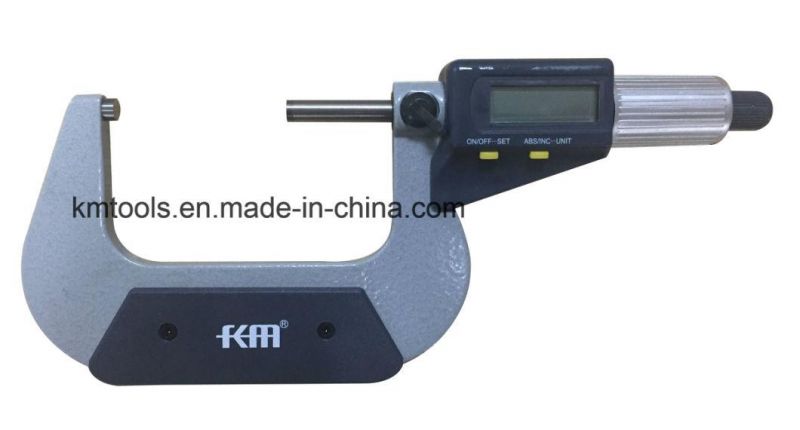

Product Description

Feature:
1.Resolution:0.001mm(Metric);0.00005''(Inch).
2.OFF/ON,SET,ABS/INC,UNIT(in/mm conversion) function keys..
3.Display data is origin data of absolute measurement after changing battery.
4.Painted frame. Carbide measuring faces.
5.Ratchet fiction thimble,
6.Criterion:DIN863/1, DIN40050/IEC529.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Resolution
KM-21328-25	0-25mm	±0.002mm	0.001mm
KM-21328-50	25-50mm	±0.002mm	0.001mm
KM-21328-75	50-75mm	±0.003mm	0.001mm
KM-21328-100	75-100mm	±0.003mm	0.001mm
KM-21328-125	100-125mm	±0.003mm	0.001mm
KM-21328-150	125-150mm	±0.003mm	0.001mm
KM-21328-175	150-175mm	±0.004mm	0.001mm
KM-21328-200	175-200mm	±0.004mm	0.001mm

Inch:

Order No.	Measuring Range	Accuracy	Resolution
KM-21328-1	0-1″	±0.00008″	0.00005″
KM-21328-2	1-2″	±0.00008″	0.00005″
KM-21328-3	2-3″	±0.00012″	0.00005″
KM-21328-4	3-4″	±0.00012″	0.00005″
KM-21328-5	4-5″	±0.00012″	0.00005″
KM-21328-6	5-6″	±0.00012″	0.00005″
KM-21328-7	6-7″	±0.00016″	0.00005″
KM-21328-8	7-8″	±0.00016″	0.00005″
