Portable Instrument Electronic Car Vehicle Axle Truck Scale 5ton 10ton 20ton
Locosc Ningbo Precision Technology Co., Ltd.- After-sales Service：2year
- Warranty：1year
- Structure：Mechanical and Electrical Scale
- Display Type：LCD
- Sensor：Analogue Scale
- Installation：Weighbridge
Base Info
- Model NO.：LP766xA
- Automation：Automation
- The Weighing Method：Static Truck Scale
- Scale Structure：Channel-Section Steel
- Operating Environment：Explosion-proof Loadometer
- Lightning Protection：With Lightning Protection
- Rated Load：20t
- Weighing Capacity：0.5~20t
- Accuracy Class：III
- Power Supply：AC110~240V 50,60Hz DC9V
- Protectio Class：IP68
- Cable Length：15m
- Load Cell：IP67 1000Ω Lp7110h
- Indicataor：Locosc Lp7560,Lp7561
- Key：25,8
- Function：Wheel Weighing, Data Store, Data Query
- Operation Mode：1,2,3,4 Platform(S)
- Weighing Mode：Ordinary Weighing, Cumulative Weighing
- Data：Wheel Weight, Axial Weight, Gross Weight, Date
- Max Connection Channel：4-Way
- Transport Package：Foam and Carton
- Trademark：LOCOSC
- Origin：China (Mainland)
- HS Code：8423829090
- Production Capacity：2000 Set, Month
Description
Indicator(optional)LP7560 LP7561
Display 128*64 LCM dot-matrix screen 6-digit 20mm LCD with backlight Accuracy class III III Key 25 8 Functions wheel weighing
axial weight weighing
data store
data query
limit setting wheel weighing
data store
data query Operation mode one/two/three/four platform(s) one/two/three/four platform(s) Weighing mode ordinary weighing
cumulative weighing (automatic/manual) ordinary weighing
cumulative weighing (automatic/manual) Data items wheel weight
axial weight
gross weight
date
time wheel weight
gross weight (key switch)
percentage Max connection channel 4-way 4-way Printout date
time
vehicle No.
article No.
wheel weight
axial weight
gross weight date
time
wheel weight
axial weight
gross weight Communication interface RS232
baud rate 600~9,600 (optional) RS232
baud rate 600~9,600 (optional) Power supply AC110~240V 50/60Hz DC9V
built-in 6V10Ah lead acid battery AC110~240V 50/60Hz DC9V
built-in 6V4Ah lead acid battery Work environment temperature: -10ºC ~ +40ºC
humidity: ≤85%RH temperature: -10ºC ~ +40ºC
humidity: ≤85%RH Dimension (mm) 470*292*115 410*160*140

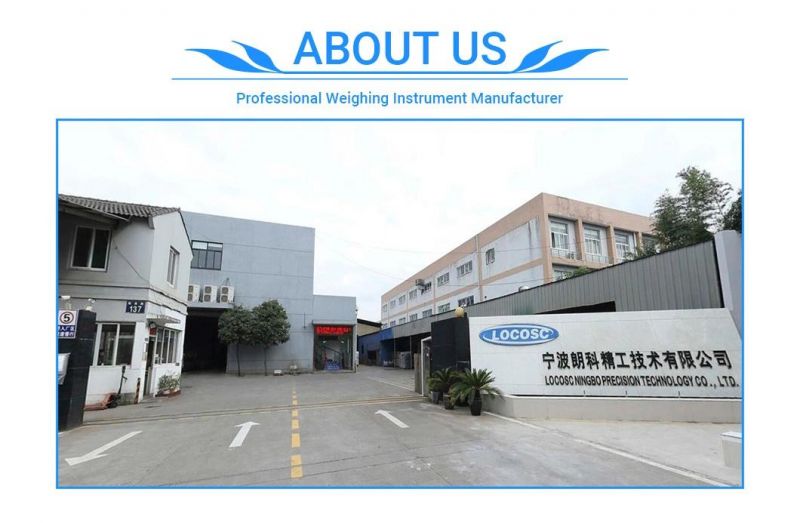

We are a manufacturer of weighing apparatus and high precision instruments for professional use. From high precision micro-analysis to more than 100 tons of weighing application, we specialize our products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. Main products: electronic weighing scale (bench scale, floor scale, platform scale, crane scale, animal scale, pallet truck scale), digital weighing indicator, load cell, sensor, weighing module, etc.
Our products have been well sold all over China, and 60% of them are exported to North America, Europe, South America, Southeast Asia. Besides, LOCOSC is an experienced company for ODM & OEM service. We have cooperation with well-known enterprises both at home and abroad. We owe our achievement to your trust and the driving force for self-transcendence. We promise to improve performance and reduce costs with abundant energy and passion.
Adhering to the business philosophy of "Modular craft, Pipelining production, Integrated brand, Global service", LOCOSC Precision is a group company responsible for the research and development, manufacturing, solutions, sales and after-sales services of weighing equipment. We are headquartered in Ningbo and have branches in Shanghai, Guangzhou, Zhengzhou, Beijing, Chengdu, Qingdao, America. We have more than 500 employees and a factory area of 23, 000 square meters.
At present, the annual production and sales capacity of LOCOSC is 30, 000 bench scales, 30, 000 floor scales, 4, 000 truck scales, 200, 000 weighing indicators, 500, 000 load cells, 20, 000 crane scales, 20, 000 platform scales, 500 loader scales, and more than 100 weighing systems. Each product of LOCOSC has its uniqueness and has been awarded many certifications, such as ISO9001, NTEP, OIML, CE.
Why Choose Us---------------------------------------------------------------------------
1. Your inquiry will be replied within 12 hours.
2. OEM or ODM projects are welcomed.
3. We send samples for customer to check the quality.
4. We provide an English manual for using and maintaining.
5. All products and accessories have been tested by three times before ship out.
6. All products have one year warranty. If there is no man-made problems, we will replace or repair for your freely.
7. We have a professional R&D team.
8. We provide good quality, on-time delivery and competitive price for you.
9. We offer the best after-sale service. If any problems happen, our team will do our best to solve for you.
FAQ-------------------------------------------------------------------------------------------
1. How to place an order for products?
Let us know your requirement or application, we will give you a quotation in 12 hours. Then we will send the PI after you confirm the order.
2. Do you have any minimum order quantity limit for load cell?
One piece for sample checking is available, but the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.
3. Do your company have any certificate for products?
Yes, we have been awarded certifications, such as ISO9001, NTEP, OIML, CE. We can send you the certificated documents and test reports.
4. What areas can your products be applied to?
Our products are rich in variety and can be used in petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.
5. Are you a trading company or a factory?
We are a group company specialized in the R&D and manufacture of weighing equipment for 12 years. Our factory is located in Ningbo, China. You can come to visit us. Looking forward to meeting you!
