Anpt (L3) Thread Plug Cauge
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Type：Thread Plug Cauge
- Measurement Object：Inside Diameter
- Test Methods：Indicator Method
- Material：Steel
- Precision Gauge：Precision Gauge
- Certification：Mil-P-7105b
Base Info
- Model NO.：1,8-27ANPT
- Usage：For Working
- Shape：Hexagon
- Customized：Non-Customized
- Transport Package：Carton or Wooden Case
- Specification：1,8-27ANPT
- Trademark：TR Solids Control
- Origin：Xi′an, China
- HS Code：9017300000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. 1/8-27ANPT Usage For Working Shape Hexagon Customized Non-Customized Transport Package Carton or Wooden Case Specification 1/8-27ANPT Trademark TR Solids Control Origin Xi′an, China HS Code 9017300000 Production Capacity 10000PCS/MonthProduct Description

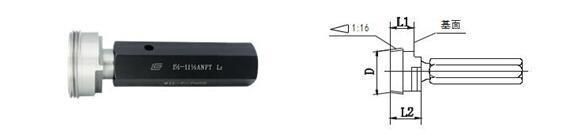

ANPT(L3)Thread Plug Cauge
Features
The standard conforms to America Aeronautical National Form MIL-P-7105B
Specifications
Unit:mm
| Thread Size | T.P.I | L1 | L2 | D |
| 1/8-27ANPT | 27 | 6.924 | 10.32 | 9.589 |
| 1/4-18ANPT | 18 | 10.02 | 12.7 | 12.660 |
| 3/8-18ANPT | 18 | 10.329 | 14.29 | 16.079 |
| 1/2-14ANPT | 14 | 13.571 | 17.46 | 19.951 |
| 3/4-14ANPT | 14 | 14.054 | 18.26 | 25.266 |
| 1-11 1/2ANPT | 11 1/2 | 16.786 | 22.22 | 31.662 |
| 1 1/4-11 1/2ANPT | 11 1/2 | 17.294 | 22.22 | 40.387 |
| 1 1/2-11 1/2ANPT | 11 1/2 | 17.294 | 22.22 | 46.457 |
| 2-11 1/2ANPT | 11 1/2 | 17.700 | 22.22 | 58.469 |
